Catalogue

Through 60 years of experience, starting from zero basis in nuclear,
Korea is more than familiar with the difficulties when adopting nuclear technology or expanding the industry.

Information

Instrumentation & control

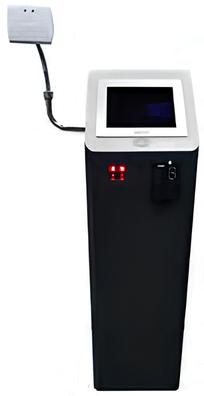

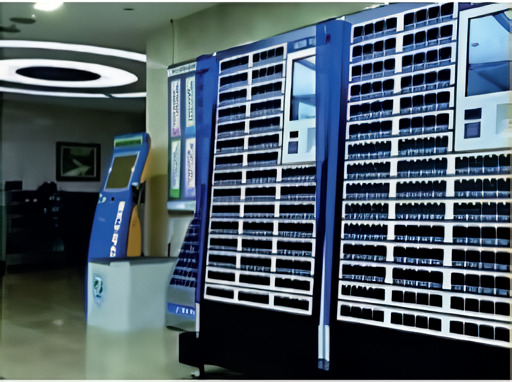

ADR Automatic Dispenser U2NG

Description & Characteristics

ADR automatic dispenser automatically dispenses the electronic personel dosimeter to permitted personnel by checking the biometrics (fingerprints) and legal dosimeter (TLD) of the worker. When returned, it sends the dose of worker to server and initializes the ADR data.

Main Customer

Korea Hydro & Nuclear Power Company, Ltd (KHNP)

Product Sepcification

  • Real time management/computation of ADR and worker loans/returns
  • Initialize existing ADR data when returned
  • ADR Mode Auto Change
  • Automated reporting of dose of worker when returned

Supplier Information

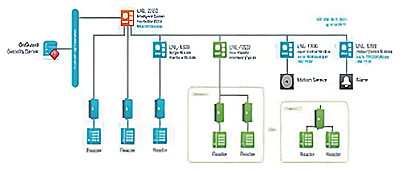

Access Control & Alarm Monitoring System HUB INFO TECH Co., Ltd.

Description & Characteristics

The LNL-2220 provides a single board solution to interface with one or two doors on the path to the OnGuard system You can zoom in and out for all access control applications, from the most basic applications to the most complex applications Also in the event of communication loss, almost all local features can remain intact until the server connection is restoredi>

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • NHN
  • HP

Certification

ISO 9001:2008

Supplier Information

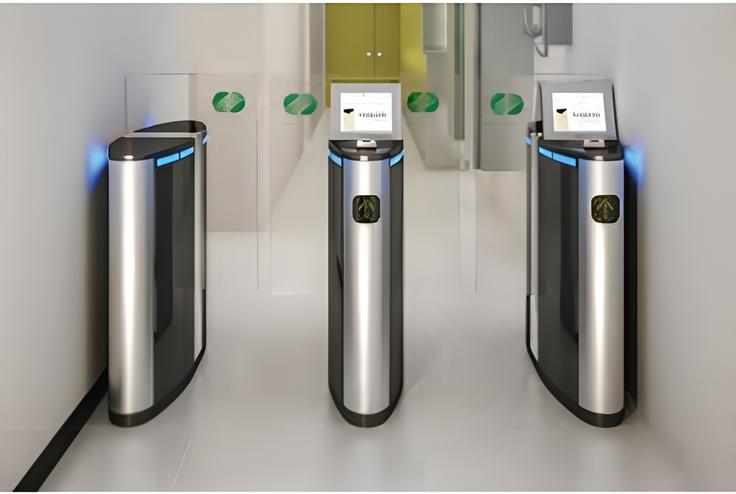

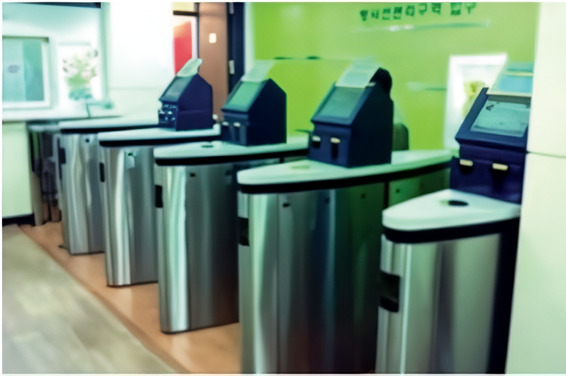

Access Control System for Radiation Controlled Zone U2NG

Description & Characteristics

Access control system for radiation controlled zone controls unauthorized access and permits only the authorized personnel into the site. By checking the technician access record and legal dosimeter, and by automatically sending the exposure dose of the technician to server, it realizes work efficiency.

Main Customer

Korea Hydro & Nuclear Power Company, Ltd (KHNP) - UAE Barakah Nuclear Power Plant (BNPP)

Product Sepcification

  • Unit Operating Method: Bi-parting Sliding Type
  • Drive System: BLDC motor
  • ADR Reader: For RFID/IrDA
  • Barcode Reader: 1D Laser
  • Size: 1,400(W) x 300(L) x 1,000(H) (mm/Ea)
  • WING: 1,000~1,800mm controllable
  • Power: 220V/60Hz, 100W at idle, 150W during operation
  • Monitor: 10.4 touchscreen monitor

Supplier Information

Automatic Seismic Trip System (ASTS) WOORI TECHNOLOGY INC.

Description & Characteristics

  • This system is desinged to take follow-up measures after Fukushima crisis to perform Trip when earthquake occurs exceeding the set value after earthquake.
  • Analyze Response Spectrum and CAV

Main Customer

Jordan Research and Training Reactor

Product Sepcification

  • Seismic Seismic Data Acquisition - Input Range : -2.625V ~ 2.625V - Resolution : 16bit - Sample Rate : 500Hz - Input Point : X, Y, Z signal
  • Seismic Data Process - 12Hz LPF, 50Hz or 60Hz LPF - Filter Order : 12th
  • Accuracy : 0.1% over full scale
  • Calibration Function

Certification

  • KEPIC-EN (Control Class 1E, Alarm, Manufacture Monitoring System)
  • ISO 9001: 2008

Supplier Information

  • WOORI TECHNOLOGY INC.
  • director@wooritg.com
  • 82-2-2102-5100
  • www.wooritg.com

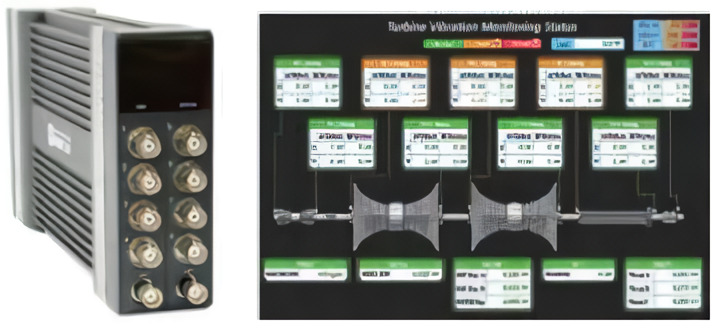

CMS (Condition Monitoring System) NADA Co., Ltd.

Description & Characteristics

System is composed so that preventive maintenance linked with production schedule as well as the failure prevention of facilities. It can be made by evaluating, controlling the condition of industrial machine through monitoring

Main Customer

  • Kolon
  • Hankook Tire
  • Nexen Tire
  • Hyundai Motors
  • POSCO
  • SNNC
  • KORAIL
  • Doosan Infracore
  • Kia Motors
  • Hyundai Mobis
  • Kia China
  • Hankook Hungary
  • Samsung SDI

Product Sepcification

  • Input signal: Voltage output sensor, current output sensor, velocity sensor
  • Frequency range: DC~25,600Hz
  • Trigger: Start Trigger
  • Power Supply: AC/DC
  • Test, Inspection: ear thquake-proof, environmentresistance, shock resistance, susceptibility test
  • Input voltage: maximum ±10V
  • Frequency: Max. 25,600 Lines
  • DO Module: 16 point (Relay Dry Contact)
  • Signal handling method: Digital Signal Processing
  • Host Interface: Ethernet (Max. 100 Mbps)
  • A/D Resolution: 24 bit
  • Dual Power: AC 100~240V, 1A

Certification

  • ISO 9001
  • ISO14001

Supplier Information

DPPS Digital Response Time Equipment REALGAIN Co., Ltd.

Description & Characteristics

Ensure the operating time of the plant protection system is measured and maintained within the operating time limit Response time measurement test - Field transmitter, DPPS ,DESFAS sub relay, DPPS cabinet and RTSG, CPC/CEAC, RTD

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • UAE Barakah Nuclear Power Plant (BNPP)

Product Sepcification

  • Voltage Output :2
  • Current Output : 3
  • Trans Output : 1
  • Resistor Output : 1
  • Signal Conditioning : 8

Certification

  • ISO9001
  • OHSAS 18001

Supplier Information

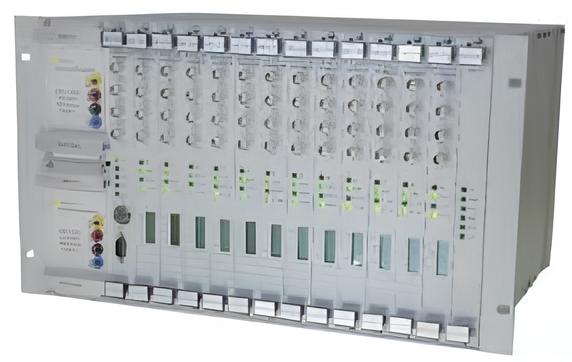

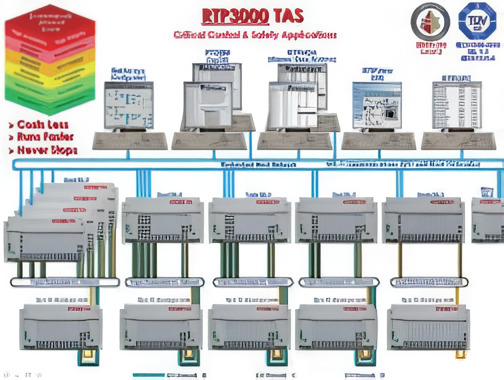

Data Acquisition & Control System RTP Korea

Description & Characteristics

  • It is a data acquisition and control system that has been produced since 1968 and is being used in major industry sectors in the United States and Germany, and is capable of providing stability and stability in internationally recognized production and nuclear power plants
  • It has also achieved NEQ Certification and SIL-3 Certification required by the nuclear power generation sector, making it applicable to a wide range of fields including nuclear power, petrochemical, LCD, semiconductors, shipbuilding and offshore

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Doosan Heavy Industries & Construction Company, Ltd (Doosan)
  • Korea Electric Power Research Institute

Product Sepcification

  • Multi Processor Architecture
  • SIL-3 Communications
  • Comprehensive Diagnostics
  • Configurable Redundancy
  • Availability in excess of 99.9999% (6Nines)
  • Reaction Time of 12 msec
  • Hot Swappable
  • Host Network Supports 1Gbps

Certification

  • ISO 9001

Supplier Information

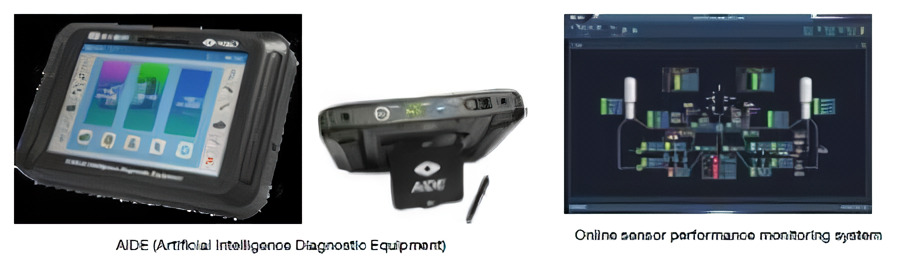

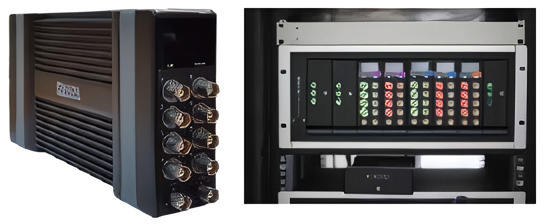

Diagnostic System for Rotating Machines & Online Sensor Performance Monitoring System M&D Corp.

Description & Characteristics

  • AIDE(Artificial Intelligence Diagnostic Equipment) - is a portable diagnostic equipment for rotating machinery. - provides data acquisition, signal analysis and artificial intelligence diagnosis without experts. - applies noise reduction processing which is considering structural effects. - combines with server software which allows the user to trend all data.
  • Online sensor performance monitoring system - evaluates the integrity and uncertainty of the sensor signals in nuclear power plant. - optimizes the calibration intervals of the sensors to reduce calibration cost and radiation exposure of employees.

Main Customer

Korea Hydro & Nuclear Power Company, Ltd (KHNP)

Product Sepcification

  • AIDE(Artificial Intelligence Diagnostic Equipment) - Input : 4 x AC/DC ICP® power supply on/off, 1 x Ultrasonic, 1 x TACHO for speed probe - AD conversion : 24 bit, 32-bit - Sampling mode : Fully simultaneous for 4 channels - Frequency Range : 8 ~ 192 kHz/channel - Operating temperature range : 10 ℃ to 50 ℃ - Data processing : Waveform, spectra, overall, cascade/ waterfall, peak and phase, filtered orbit, cross channel phase, FFT zoom, DC volt - Application Mode : Raw signal recording, operational modal analysis, bearing/hear analysis, orbit analysis, heterodyne analysis, fault source analysis, coast down, etc. - CPU : Intel® Pentium® Gold 4415Y, 1.6 GHz - Memory : 128GB - Display : 10 inch touch panel(1800x1200) - Battery : 12.6 V(10.8 V nominal), 10,440 mAh - Interface : HDMI, Ethernet, USB, AUX - Size(W x H x D) : 300 x 199 x 56 mm
  • Online sensor performance monitoring system - Performance monitoring models in application of AAKR, Gaussian process regression and Kalman filter

Certification

  • Broadcasting and communication equipment registered in accordance with the relevant Korean law(R-R-MA1-AIDE)
  • Dust and water proof (tested in compliance with IP6X and IPX5 of KS C IEC 60529 : 2013)

Supplier Information

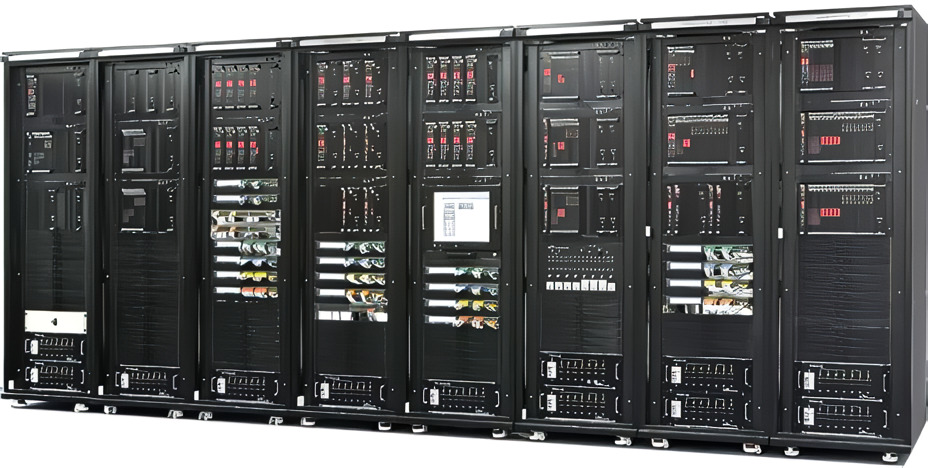

Distributed Control System (OPERASYSTEM-1400) WOORI TECHNOLOGY INC.

Description & Characteristics

  • As a distribution control system for nuclear power plant which was successful in localizing for the first time domestically in 2010, this product is DCS platform developed for the purpose of applying to MMIS nonnuclear series instrumentation control system of APR-1400 type nuclear power plant. Currently, it was delivered to new reactor 1,2 at Ulchin MMIS and will be delivered to new reactor 5,6 at Kori by November, 2017.
  • Application series are as follows: - Power Control System series - Plant Control System series - NSSS(Nuclear Steam Supply System Control System) series - Main Feed Water Control System series - Diversity Protection System series

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Jordan

Product Sepcification

  • Reliability and Stability - To secure reliabillity by dualization of control unit, dualization of control CPU module, dualization of I/O interface, dualization of communication network, dualization of power - Real time monitoring through self-diagnosis
  • Deterministic communication network structure - Guaranteed dispersion control method that divides into control communication network and information communication network. - To secure deterministic response time by transmitting only real-time control data based on the status through a control communication network - The information communication network separates and transmits non-real time and event data
  • Open architecture based on the industry standard - To suppor t International Standard IEC 61131-3 programming language and SAMA block format for controlling nuclear power plant - To adopt International Standard Ethernet, MODBUS, HART interface
  • Convenient diagnosis and maintenance - Online/offline diagnosis and hot-swap functions enables to change modules during operation

Certification

  • ISO 9001
  • KEPIC-EN

Supplier Information

  • WOORI TECHNOLOGY INC.
  • director@wooritg.com
  • 82-2-2102-5100
  • www.wooritg.com

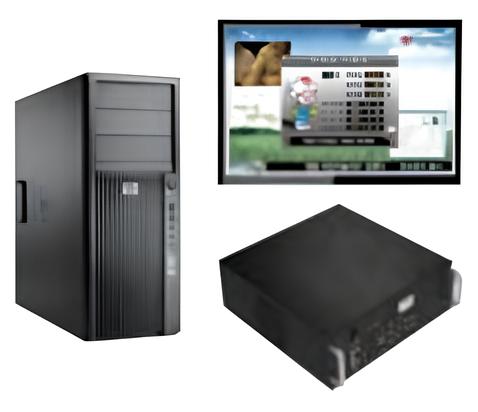

Door Monitoring System HUB INFO TECH Co., Ltd.

Description & Characteristics

  • Regardless of the type of access control system in operation, the access control system acquires the time to rest the open-closure information for the doors and guarantees the normal operation during one-way communication
  • The system provides data storage, management and backup data, and enables designation of the door to be monitored
  • The stored setup values are automatically loaded according to the connection account, regardless of the client location, and the system configuration operates as a server-client system

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • NHN
  • HP

Product Sepcification

  • Registration and deletion of entrance information
  • The doors may be opened, forced open, or closed
  • Real-time door monitoring based on the GUI (Graphic User Interface)
  • Log in and provide operational status logs and reports per account
  • Log and report on the status of the alarm and actions for each door
  • If real-time reception of incoming and outgoing information is interrupted due to communication failure or system failure, the information is automatically received without any special system startup

Certification

ISO 9001:2008

Supplier Information

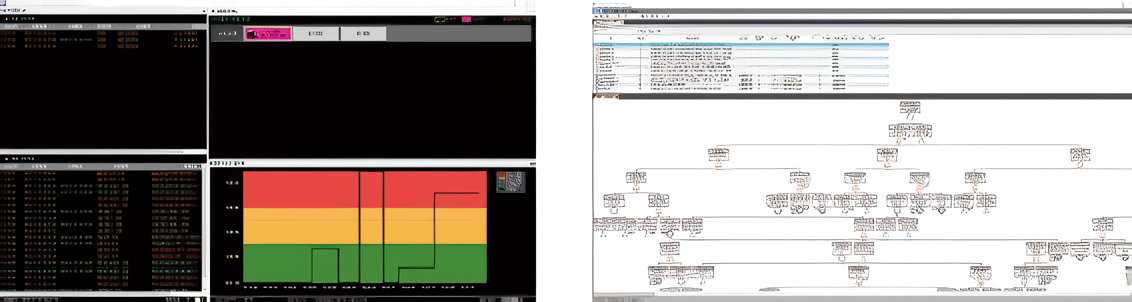

Dynamic Risk Monitoring System Korea Reliability Technology & System

Description & Characteristics

  • Monitors hazard(s) of system that occur during the operation-failures, abnormalities, maintenance status, etc.
  • Evaluates the current risk of the system given the hazard(s), based on pre-defined FT/ET models
  • Locates and displays the failure(s), or abnormalities of the system in operation
  • Helps the operator to perform the preventive action to deal with the event(s)
  • Includes a fast FT calculation algorithms

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • KORAIL

Product Sepcification

  • DB Server/Execution Server
  • Windows based
  • 3 Displays
  • Fast Fault Tree Calculator
  • The status information of components is needed to input to the system in any way

Certification

SIL2 (IEC 62279)

Supplier Information

  • Korea Reliability Technology & System
  • info@korts.co.kr
  • 82-2-409-6701

FPGA-Based DPS / Diverse Protection System WOORI TECHNOLOGY INC.

Description & Characteristics

A system to stop nuclear reactor and turbine from operating the auxiliary feedwater system to protect the power plant when the protection system of the power plant is dysfunctional

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Doosan Heavy Industries & Construction Company, Ltd (Doosan).

Product Sepcification

  • Logic FPGA : 1,000,000 Gate
  • Analog Input/Output : 8ch differential, Resolution 16bits
  • Analog Signal Auto Calibration
  • Digital Input/Output : 32ch, input-output signal Feedback

Certification

  • KEPIC-EN
  • ISO 9001:2008

Supplier Information

  • WOORI TECHNOLOGY INC.
  • director@wooritg.com
  • 82-2-2102-5100
  • www.wooritg.com

Fault Monitoring & Recording System Phoenix Engineering

Description & Characteristics

  • A multifunction substation monitor offers advanced fault recording and long duration disturbance monitoring with options of phasor measurement in compliance to the IEEE C37.118 2005 Specification
  • The system can provide the most accurate fault location available using traveling wave methodology and Class A power quality in compliance with IEC 61000-4-30 class A

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Samsung Engineering Co.
  • Bumyang

Product Sepcification

  • Utilizes the most accurate measurement chain including sampling rate of 512 samples per cycle and analog resolution of 20 bits on current channels
  • Option of travelling wave fault location with accuracy of ±60 meters (200 feet)
  • Full solid state device and high reliability

Certification

  • ISO 9001
  • ISO 14001

Supplier Information

Fuel Inspection Equipment Korea Nuclear Technology Co., Ltd.

Description & Characteristics

As equipment inspecting any defect of fuel cladding tube of nuclear fuel after use, it is composed of visual, ultrasonic inspection.

Main Customer

Korea Hydro & Nuclear Power Company, Ltd (KHNP)

Product Sepcification

  • Main components: Movable Visual Inspection System, Ultrasonic Test System
  • Radiation Tolerance : min. 1x 104 Gy
  • Zoom range : x100, Waterproof : min. 40m
  • Ultrasonic probe : Single

Certification

KS Q ISO 9001:2012

Supplier Information

  • Korea Nuclear Technology Co., Ltd.
  • knt@knt.re.kr
  • 82-42-935-8711
  • www.knt.re.kr

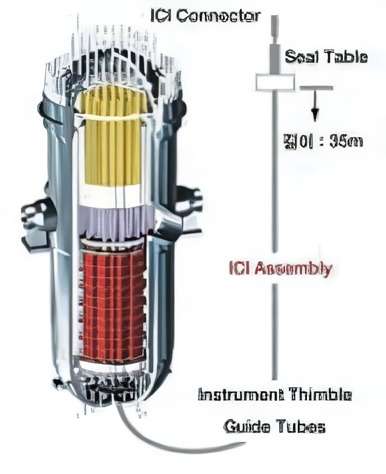

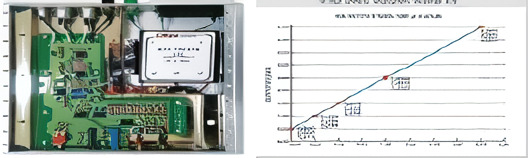

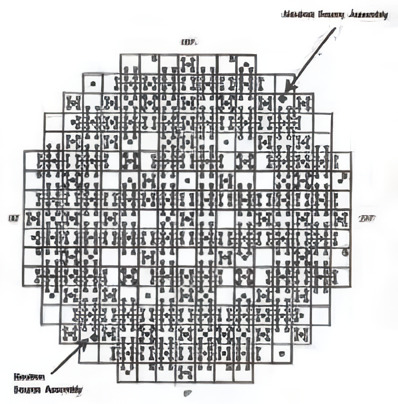

In Core Amplifier Module REALGAIN Co., Ltd.

Description & Characteristics

  • Amplifier module converts the current generated from In- Core Flux Detector to voltage and measures the amplified output voltage
  • Control reactor power output of pressurized heavy water reactor type nuclear power plant
  • Improved output linearity, accuracy and reliability of the amplification module.
  • Improvement in response time and full compatibility with other modules.

Main Customer

Korea Hydro & Nuclear Power Company, Ltd (KHNP)

Product Sepcification

  • Size : 8.72 × 1.35 × 9.80
  • Supplying Power : 120 VAC ± 10%(60 Hz ± 2%)
  • Detector input - Adjustment profit scope : 11 - Current range(100% R.P.) : 440nA ~ 2.6 uA
  • Others - Non-linearity(Percent) : 〈 0.5% - Insulation(Dielectric)
  • DC. leak current @500V : ≤ 1 μA
  • AC. leak current @500V, 60Hz : ≤ 1 mA

Certification

  • Environment-resistance test : IEEE-323-2003
  • Electromagnetic Test : Reg. Guide 1.180-2003
  • Seismic test : IEEE-344-2004
  • ISO9001, OHSAS 18001

Supplier Information

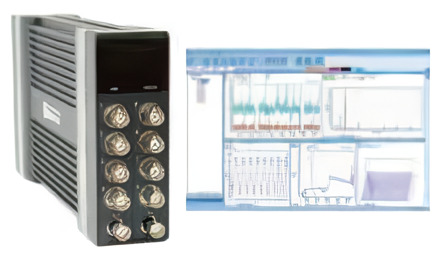

Loose Part Monitoring System(LPMS) WOORI TECHNOLOGY INC.

Description & Characteristics

LPMS is one of the NIMS(Structural Integrity Monitoring and Diagnosis of Nuclear Reactor System). The shock sensitive accelerometer sensor attached on the external wall of steam generator and nuclear reactor drifts around with water coolant in a system estimating the location, weight and the risk of loose parts which can create critical damage to a system. By providing information of the risk of internal damage it consolidates structural integrity of nuclear reactor system.

Main Customer

  • Kori NPP #1,2,3,4
  • Hanbit NPP #1,2
  • Hanul NPP #1,2

Product Sepcification

  • Input Accelerometer signal : - 16ch (Default), Max. 32ch (Using two MCU)
  • DSP Technology : TMS320C6747 32Bit 300MHz,100KHz
  • Sampling and digital filter
  • Analysis Software : Trend Display, System diagnostics, Provide various Wave From Analysis Methods

Certification

  • KEPIC-EN (Control Class 1E, Alarm, Manufacture Monitoring System)
  • ISO 9001: 2008

Supplier Information

  • WOORI TECHNOLOGY INC.
  • director@wooritg.com
  • 82-2-2102-5100
  • www.wooritg.com

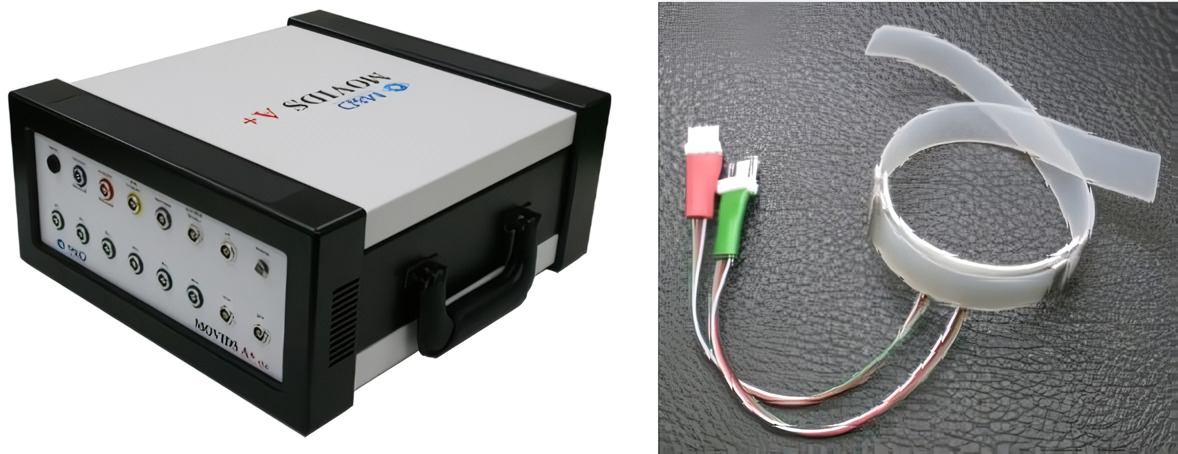

Motor and Air-Operated Valve Intelligent Diagnostic System & Stem sensor M&D Corp.

Description & Characteristics

VIDS A + is a system for implementing the Nuclear Safet y Commission Notice 2016-14 (US NNR GL89-10, GL96-05). ensures that the design-based operating margins and performance of Motor and Air-Operated Valve are maintained. has the functions of valve diagnosis, signal analysis, nonintrusive measurement (motor control center technique), and abnormality analysis. ACSENTT is a strain gauge force-torque measurement sensor that measures valve stem thrust and torque.

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP) / Korea
  • KEPCO Plant Service & Engineering Company, Ltd (KEPCO KPS) / Korea
  • Korea Institute of Machinery & Materials (KIMM) / Korea
  • Samshin Limited Co., Ltd. / Korea
  • Barakah Nuclear Power Plant (BNPP) / UAE

Product Sepcification

  • VIDS A +
  • Channel Spec. : 6 voltage/pressure channels, 6 current/pressure channels, 2 coil current channels, 1 encoder channel, 4 strain gauge channels, 2 switch channels, 1 voltage output, and 1 current output
  • Maximum Sampling rate : 12,500/ch
  • Operating Temperature : 0~50℃
  • Size : 377 x 330 x 126 ㎜ (W x D x H) ACSENTT
  • Accuracy : ±7.8%RD
  • Operating Temperature : -20~175℃
  • Size : height 13mm, thickness 1.3 mm

Certification

  • ISO9001

Supplier Information

Nuclear Emergency Broadcasting System GSC Co., Ltd.

Description & Characteristics

The system is a state-of-the-art disaster prevention broadcasting system that allows client systems to be installed at each off-direction post at the nuclear power plant and selectively transmits broadcast and video over Ethernet from the central control room

Main Customer

  • Korea Western Power Co., Ltd (WP)
  • Korea Midland Power Co., Ltd (KOMIPO)
  • Korea South-East Power Co., Ltd (KOEN)

Product Sepcification

  • Process type/speed : Intel CoreTM 2 duo
  • HDD : 2.5” 160G
  • Built-in Cache : 256KB X 4, L2 Cache
  • Processor FSB : 1333 MHz FSB
  • Main Memory : 2 X 240-pin DDR2 667 to 2.0GB
  • PCB : 8 layers, Mini-ITX form factor
  • Onboard Lan Features : Two Realtek RTL8111C PCI Express Gigabit controllers
  • Audio Features : Realtek ALC662 High Definition audio codec

Certification

  • I 2012-753

Supplier Information

  • GSC Co., Ltd.
  • gsc5@chol.com
  • 82-31-925-6232
  • www.gsc5.kr

Nuclear Field Monitoring System GSC Co., Ltd.

Description & Characteristics

The system uses the model PAGING PHONE 2 WIRE LINE to form a 100Mbps high-speed network with no additional cabling while providing high-resolution images

Main Customer

  • Korea Western Power Co., Ltd (WP)
  • Korea Midland Power Co., Ltd (KOMIPO)
  • Korea South-East Power Co., Ltd (KOEN)

Product Sepcification

  • Network Interface : Ethernet 10/100 Base-T(RJ45)
  • Network Protocol : TCP/IP, UDP, Multicast, DHCP, SMTP, HRRP, SNMP, RTP, RTSP, FTP
  • Standards : H.264 Compression Algorithm/JPEG
  • Data Rate : 32Kbps~12Mbps
  • Max Resolution : 1920 X 1080 @ 30fps
  • Motion Detection : Sensitivity Adjustment
  • CMS : Max 36 CH, Live Monitoring, Recording, Search & Playback, Backup

Certification

  • I 2012-753

Supplier Information

  • GSC Co., Ltd.
  • gsc5@chol.com
  • 82-31-925-6232
  • www.gsc5.kr

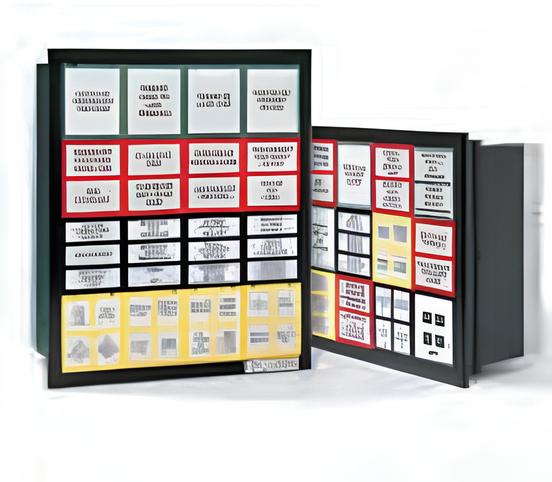

Plant Annunciator System Phoenix Engineering

Description & Characteristics

Annunciators are designed to display complex plant processes or process conditions by alerting operators through individual window panel systems

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Samsung Engineering Co.
  • Bumyang

Product Sepcification

Flasher, indicator lights and pushbuttons, Monalarm, Dualarm, Trialarm and Quadalarm, Standard 3.5” x 3.5” mechanical cabinet modules, Over 30 years of field proven stability and quality, CSA Approved

Certification

  • ISO 9001
  • ISO 14001

Supplier Information

RCA Access Control System U2NG

Description & Characteristics

  • Access Control based on Radiation Work Permit.
  • Access Restriction of unauthorized worker, worker who has exceeded the allowed dose limit.
  • While a worker entering into the RCA, operation dose expected in the RWP is set to alarm value in EPD.
  • Worker ’s access(Entrance and Exit) data is transferred into the Database Server. So is worker ’s exposure dose data during his or her exiting.
  • Daily/Monthly/Yearly exposure dose inquiry for each worker.
  • While worker’s entering into RCA or leaving from RCA, EPD's mode is changed between Active and Pause.

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP), UAE Barakah Nuclear Power Plant (BNPP)
    • 2018 : NAWAH ENGERY COMPANY, KORI 2, HANBIT 1, HANBIT 3, HANUL 1, HANUL 2
    • 2017 : SHINHANUL 1, KORI 1, KORI 2, WOLSONG 3
    • 2016 : UAE Barakah Nuclear Power Plant (BNPP) Unit 1,2,3,4, WOLSONG 1

Product Sepcification

  • Power : 100V
  • 240V / 50Hz
  • 60Hz
  • Dimension(W x H x D) : 1,400 x 1,000 x 300mm
  • EPD Reader : Selectable according to EPD communication method between RF communication/infrared communication
  • Biometric Recognition System - Fingerprint System : Optical Sensor, USB type interface - Hand Vein Recognition : Contactless infrared sensor, INTF. ENET/RS232/RS485
  • Bar Code Scanner : 1D/2D Radial Form, Effective Dist. 47~216mm
  • Industrial PC : CPU-Intel i7, 3.4Ghz, RAM-4GB, SSD-120GB
  • Monitor : 15” LCD infrared Type, Screen Rat. 4:3, Res. : 1024 * 768
  • WING height : Adjustable between 1,000mm and 1,800mm

Certification

  • KC
  • GS

Supplier Information

RCB Access Control System U2NG

Description & Characteristics

  • Taking in and out items through the link of a work permit with the worker in charge after self-authenticating using TLD barcode.
  • Printing RFID tags and taking pictures of items when brought in.
  • Approval by the administrator upon the taking-in and out items Real-time storing and retrieving of information on incoming and outgoing items.
  • Printing the procedures for bringing in and out items.

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
    • 2018 : HANBIT 1
    • 2016 : HANBIT 2

Product Sepcification

  • Kiosk - Power : 100V
  • 240V / 50Hz
  • 60Hz - Dimension(W x H x D) : 560 x 1,555 x 450mm - Industrial PC : CPU-Intel i7, 3.4Ghz , RAM-4GB, SSD-120GB - Monitor : 19” LCD, Infrared Type, Screen Ratio 4:3, Res. 1280 * 1024
  • Reader (Option) - QR Code Reader : 1D/2D Radial Form, Effective Dist. 47~216mm - RFID Tag Reader : Freq 13.26MHZ, Interface USB, Operation Indicator LED, Power Consumption 50mA @ DC5V, Max reading range less than 5cm, Interface HID (Human Interface Device), Size H53 x D85 x W17mm
  • Printer (Option) - QR Code : Res. 300 DPI, Max print width 4.09“, Max print lgth. 450”, Max print speed 12 IPS, Size H276 x D326 x W502mm - RFID Tag : Printing method Thermo-electronic + thermal, Res. 306 dpi / 12.05 dot, print width 127.5mm, Communucation RS232 Serial + Parallel, Size W309 x H460 x D291mm
  • Camera : Image Sensor-CMOS, Photo Pixel-3mil, Interface USB 2.0

Certification

  • KC
  • GS

Supplier Information

Rotator Vibration Monitoring System Autosys

Description & Characteristics

It is capable of providing contingency planning for major appliances such as electric motors, turbine propellers, sea pumps, compressors, fans, etc. in the fields of hydroforming power plants, wind power, ships, and major plants that can be prevented from rotating in advance

Main Customer

  • Korea Gas Co.
  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)

Product Sepcification

  • LCD devices that can display vibration values that can be read directly at the scene
  • 2400 MFOPS High Speed Math DSP by 4 channel IO module
  • Any existing vibration sensor such as proximeter, icp, and voltage
  • The integrated io module is used in common regardless of sensor type
  • Hot-swap and Power Redundancy to replace the io module during operation
  • Power supply voltage reading terminal for maintenance

Certification

  • ISO 9001

Supplier Information

  • Autosys
  • 82-2-855-8877

Siesmic Monitoring System WOORI TECHNOLOGY INC.

Description & Characteristics

A system to analyze earthquake wave detected by accelerometer sensor to provide alarm sounding in the situation of set value(0.01g) excess to the main control section Through earthquake data analysis, the system conducts stability evaluation as well as estimate operating basis ear thquake(OBE), and allows the user to analyze earthquake information during and after the earthquake

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Doosan Heavy Industries & Construction Co.

Product Sepcification

  • Software technology : frequency analysis algorithm, response spectrum analysis algorithm, CAV discriminant algorithm
  • System technology : system dualization(Power and data), earthquake signal collection and analysis

Certification

  • KEPIC-EN
  • ISO 9001:2008

Supplier Information

  • WOORI TECHNOLOGY INC.
  • director@wooritg.com
  • 82-2-2102-5100
  • www.wooritg.com

Siesmic Monitoring System (SMS) WOORI TECHNOLOGY INC.

Description & Characteristics

A system that analyzes earthquake wave detected by high speed data scanning from accelerometer sensor to provide alarm in the situation of set value(0.01g) excess to the main control section, and through earthquake data analysis, proceeds stability evaluation and as well as estimate operating basis earthquake(OBE) and allows operator to analyze earthquake information even after the earthquake

Main Customer

  • Kori #1,2,3
  • Hanbit #1,3,5
  • Hanul #1,3

Product Sepcification

  • Maximize Reliability, Implemented on Embedded System - Save in Flash Memory, VMEbus Structure - Input Seismic Sensor signal : 8ch - DSP : TMS320C6747 32Bit 300MHz, - 100KHz Simultaneous Sampling and Real-time Digital Filtering - Provide various Wave Form Analysis Methods
  • Frequency Alanysis Algorithm - Response Spect rum Analys is Algor i thm, CAV Discrimination Algorithm

Certification

  • KEPIC-EN (Control Class 1E, Alarm, Manufacture Monitoring System)
  • ISO 9001: 2008

Supplier Information

  • WOORI TECHNOLOGY INC.
  • director@wooritg.com
  • 82-2-2102-5100
  • www.wooritg.com

Signal Isolated Splitters (SIS) WOORI TECHNOLOGY INC.

Description & Characteristics

  • I.Splitter is a product to change and distribute signal (mA, V, Contact) after electrical segregation by receiving various signal (mA, V, mV, Pt100, Contact) from site
  • Quality class : Q
  • Eletric Power class : CLASS 1E

Main Customer

  • Shin-Hanul #1,2 Auxiliary Process Cabinet(APC) (Doosan Heavy Industries & Construction)

Product Sepcification

  • Input Power Standard : 24VDC ± 2.4VDC - Control over Gain and offset - Voltage, Current Signal Accuracy (full Scale)
  • Room Temperature 0°C ~ 40°C : 0.1%
  • Room Temperature 40°C ~ 70°C : 0.2% - Size : 95.4mm X 180.4mm X 85mm - DIN Rail Mounting (W35mm)

Certification

  • KEPIC-EN (Control Class 1E, Alarm, Manufacture Monitoring System)
  • ISO 9001: 2008

Supplier Information

  • WOORI TECHNOLOGY INC.
  • director@wooritg.com
  • 82-2-2102-5100
  • www.wooritg.com

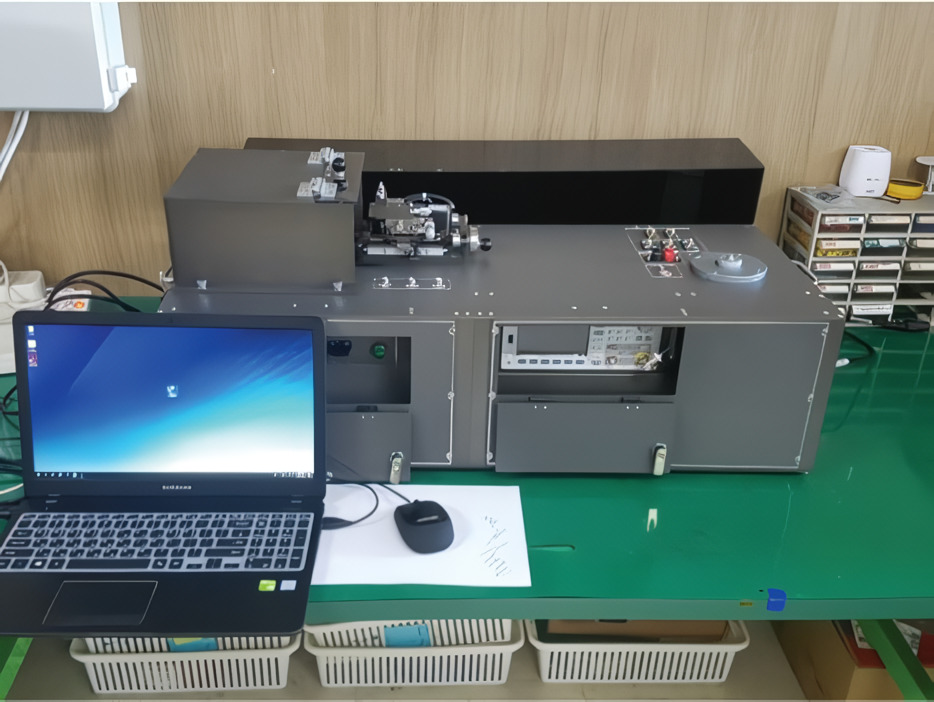

Speed Sensor and Acceleration Sensor Diagnostic System REALGAIN Co., Ltd.

Description & Characteristics

  • Check the integrity of the sensors (displacement, vibration and speed) used with largescale rotary equipment such as power plant turbine, high pressure pump
  • Speed Pickup Sensor - Measure sensitivity by velocity
  • Displacement Sensor - Measure sensitivity by distance
  • Speed/acceleration Sensor - Measure sensitivity by frequency change

Main Customer

  • Ulsan Oil-Fired & C.C power complex / Korea

Product Sepcification

  • Speed Pickup Sensor & displacement Sensor measuring part
  • Speed & acceleration Sensor measuring part
  • Diagnostic computer

Certification

  • ISO9001
  • OHSAS 18001

Supplier Information

Vibration Monitoring System NADA Co., Ltd.

Description & Characteristics

  • VMS is the most reliable and commonly used solution for facility status monitoring.
  • Real-time data acquisition and diagnosis is available with NADA’s VDPM & Analyzing S/W.
  • V-net 7000 enables predictive maintenance & maximizes facility operation efficiency of your site.
  • NADA’s VMS manages various parameters including vibration, temperature, pressure, lubrication and etc.
  • Visualized mimic graphic & 16 different plots help you to make better & faster decisions.

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP), Ltd. / Korea
  • Korea East-West Power Co., Ltd (EWP) / Korea
  • Andritz Hydro GmbH / Germany
  • ONGC / India
  • PETRONAS / Malaysia

Product Sepcification

  • API 670 5th Edition Compliant
  • 8 Analog Input Channels & 2 Tacho Input Channels per Module
  • Redundant Power Supply & Hot Swap Available
  • Stand-alone Type 8ch Module or Universal Type Rack (Max 48ch)
  • Full Sensor Compatibility
  • Intuitive LED Sensor Status Display
  • 4~20mA Output
  • Communication with other systems such as DCS, PLC, MES, PI Systema & Turbine Control System

Certification

  • ISO 9001
  • ISO 14001
  • OHSAS 18001
  • CE

Supplier Information

Vibration Monitoring System (VMS) NADA Co., Ltd.

Description & Characteristics

  • System that systemizes the vibration analysis technology & knowhow of power plant, grafts intelligent prediction analysis, detects the failure or problem of main facilities earlier to prevent a severe accident by monitoring the condition of turbine & main rotating devices in real time.
  • This is designed to enable to replace on online even though there is failure or defects. Online & offline diagnosis programs and handing manuals for failure checking and performance test are repaired so that it can give a help to operator's proper handling and checking of failure.
  • All provided equipment is a product applied the best quality and up-to-date technology. All electronic parts have module structures having rich compatibility. All equipment has an application history. This system has a life and durability that endure continuous commercial operation more than 10 years, and can supply parts that require replacement from abrasion or deterioration and can support technical assistance. For HMI graphic, it is required to discuss in advance with a purchaser. It is possible to operate under the ambient temperature of -45°C ~85°C and humidity of 5% ~95%, which is the environmental conditions in a control room of power plant.

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Korea East-West Power Co., Ltd (EWP)
  • Emirates Nuclear Energy Corporation (ENEC)

Product Sepcification

  • Input Chanel: Analog input 8CH, Tacho 2CH, 1Rack=48CH
  • Input Sensor: All kinds of sensors such as vibration sensor of noncontact displacement meter, velocity sensor and acceleration (ICP) sensor and current, pressure, temperature and so on.
  • Input Signal: voltage output sensor (AC, DC, AC+DC), current output sensor, velocity sensor
  • Alarm buffer: Raw Data before / after giving an alarm can be saved and transmitted.
  • Maximum Frequency: 25,600Hz: Diagnosis of high frequency such as chattering of low speed roll and machine tool and fluid vibration (Noise analysis function : audio frequency range)
  • Trigger / Start Trigger : To start measurement after getting a trigger signal at the special time
  • External SD Memory: When an alarm rings, the data before and after the alarm can be saved automatically to increase convenience of Data analysis
  • Inside Memory: Mobile DDR 256MB
  • Power Supply: AC/DC, PoE : Power supply through LAN cable (construction cost save: no need of separate power work)
  • Test, Inspection: ear thquake-proof, environmentresistance, shock - resistance, susceptibility test
  • Input voltage: maximum ±10V
  • DC measurement: 0.1Hz LP Filter(-3dB)
  • AC measurement: 0.1Hz HP Filter(-3dB)
  • Frequency Resolution: Max. 25,600 Lines
  • DO module: 16point (Relay Dry Contact)
  • Signal handling type: Digital Signal Processing
  • To Host Interface: Ethernet Max. 10/100Mbps
  • A/D Resolution: 24bit
  • Dual Power: AC100~240V 2.5A
  • CPU: OMAP-L138 (ARM9DHK DSP dual core)
  • Storage:: Manual & Automatic
  • Interval of data collection: 0.1 sec
  • Sound Recording: Realization of actual noise by transforming the vibration waveform to the sound wave within the audible frequency range (Sensible diagnosis is possible)
  • Rec.Output: 40CH Rec. Output (4~2mA)

Certification

  • ISO 9001
  • ISO14001

Supplier Information

FPGA-Based DPS (Diverse Protection System) WOORI TECHNOLOGY INC.

Description & Characteristics

A system to stop nuclear reactor and turbine from operating the auxiliary feedwater system to protect the power plant when the protection system of the power plant is dysfunctional

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Doosan Heavy Industries & Construction Co.

Product Sepcification

  • Logic FPGA : 1,000,000 Gate
  • Analog Input/Output : 8ch differential, Resolution 16bits
  • Analog Signal Auto Calibration
  • Digital Input/Output : 32ch, input-output signal Feedback

Certification

  • KEPIC-EN
  • ISO 9001:2008

Supplier Information

  • WOORI TECHNOLOGY INC.
  • director@wooritg.com
  • 82-2-2102-5100
  • www.wooritg.com

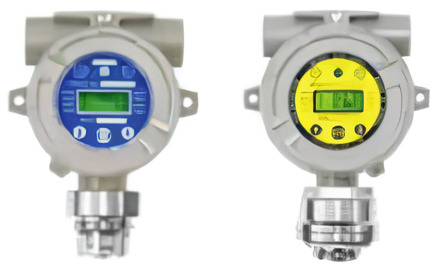

Flammable & Oxygen Gas Detector (GTD-2000 Series) Gastron Co., Ltd.

Description & Characteristics

  • Continuous detection of flammable gases in explosion hazardous area with flame proof structure
  • Self diagnosis function with built-in Microprocessor
  • Detection gas from low to high concentration owing to various detection principle
  • Stable quality and proved detection principle for service life
  • Built-in back light LCD or OLED display

Main Customer

  • SAMSUNG(Korea)
  • ISC(China)
  • Hong Hsiang(Taiwan)

Product Sepcification

  • Measuring gas: Flammable gas / O2
  • Measuring type: Diffusion type
  • Measuring method: Catalytic cell / Hot wire semiconductor cell / thermal conductivity cell / Electrochemical cell
  • Accuracy: ±3%/Full Scale

Certification

  • TIIS, KCs, ATEX, IECEx, NEPSI, UL, CE, KC, MED, KR, ABS, BV, DNV, HART, SIL2, PESO, TRCU ex , CPA

Supplier Information

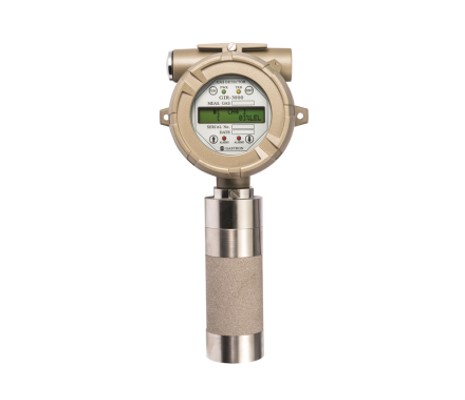

Infrared Gas Detector (GIR-3000) Gastron Co., Ltd.

Description & Characteristics

  • Continuous detection of flammable, CO2, CO and N2O gases in explosion hazardous area with flame proof structure
  • State-of-the art infrared detection principle
  • Long service life time(more than 5 years)
  • Operation in non oxygen environment
  • Fast response time(<6 sec)

Main Customer

  • SAMSUNG(Korea)
  • ISC(China)
  • Hong Hsiang(Taiwan)

Product Sepcification

  • Measuring gas: Hydrocarbon gas / CO2 / CO / N20
  • Measuring type: Diffusion type
  • Measuring method: Infrared type
  • Response time: <6sec/90%scale, <3sec/50%scale
  • Accuracy: ±3%/Full Scale

Certification

  • KCs, ATEX, IECEx, NEPSI, UL, KR, MED, ABS, DNV, KC, KFI, CE, HART, SIL2, PESO, TRCU ex, IEC 60079-29- 1:2008, CPA

Supplier Information

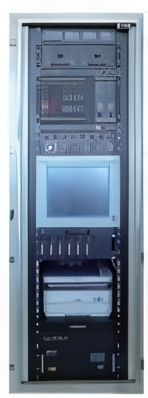

Nuclear Power Output Indicator GSC Co., Ltd.

Description & Characteristics

The indicator uses the modulator to transmit high definition video on the basis of coaxial cable transmission or Ethernet, especially in conjunction with the nuclear disaster prevention system

Main Customer

  • Korea Western Power Co., Ltd (WP)
  • Korea Midland Power Co., Ltd (KOMIPO)
  • Korea South-East Power Co., Ltd (KOEN)

Product Sepcification

  • CPU : Intel Pentium Dual-Core E5300 processor
  • Memory : 1GB(1GB X 1ea), PC3-10600, DDR3-1333/Memory Slot X 4ea
  • HDD : 160GB(Serial ATA 2, 7200rpm)
  • Board : Intel Q43 Express Chipset
  • LAN : Intel Giga Bit / On Board
  • Power : 240W
  • OS : WindowXP Pro, Povision Client Software

Certification

  • I 2012-753

Supplier Information

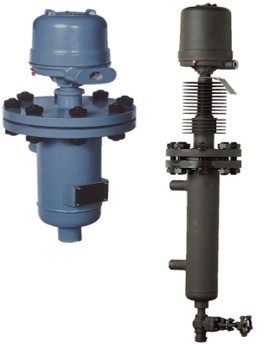

Float Operated Type Level Switch (OMS Series) Hanla IMS Co., Ltd

Description & Characteristics

  • The design of Hanla IMS float operated level switches are based upon the principle that a magnetic field will see through non-magnetic materials such as stainless steel.
  • In the case, the float moves a core within a non-magnetic enclosing sleeve and actuates a switch unit within magnetic field.
  • High load carrying capacity
  • Environmental safety
  • Vibration resistance

Main Customer

  • Korea Hyrdo & Nuclear Power Co., Ltd (KHNP) - Hanul NPP
  • Korea Western Power Co., Ltd (KOWEPO) - Taean Thermal Power Complex #2 & #6

Product Sepcification

  • Material : 304SS, 316SS, 316LSS
  • Rated Voltage : 120V AC 5A, 250V DC0.5V

Certification

  • ISO 9001
  • ISO 45001
  • ISO 14001
  • QHSAS 18001

Supplier Information

Magnet Level Gauge System Samhoi Industrial Co., Ltd.

Description & Characteristics

  • The indicator is based on a 20mm wide column with several 11mm high, hinged segments each with a small vertically built- in permanent magnet
  • The segments are flipped over 180°when passed by a float with a permanent magnet

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • STX
  • Doosan Heavy Industries & Construction Company, Ltd (Doosan)

Product Sepcification

  • Float and standpipe are manufactured in antimagnetic, stainless steel. Standard connection is 3 /4 welding sockets.
  • Indicator segments and bearings are Host a form C

Certification

  • ISO 9001(SKQ-10474)
  • ISO 14001(SKE-10294)

Supplier Information

  • Samhoi Industrial Co., Ltd.
  • shico007@chol.com
  • 82-55-321-0578
  • www.shico.co.kr

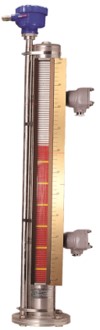

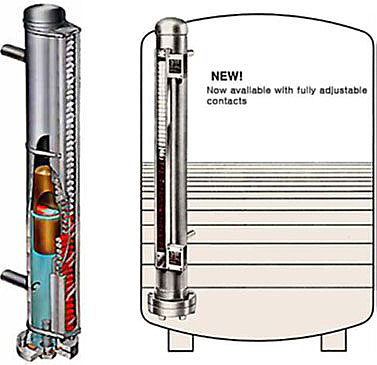

Magnetic Float Type Level Gauge (FLG Series) Hanla IMS Co., Ltd

Description & Characteristics

  • Hanla IMS magnetic float type level gauges have been developed to comply with the requirements of the SOLAS 1981, 1983, 1996, 1997, 1998 amendments.
  • T he gauge s constr uc tion is acce pte d by ma rine classification authorities throughout the world. - High Visibility - Environmental safety - Efficiency - Electric Control - Widely used to Measure

Main Customer

  • Korea Hyrdo & Nuclear Power Co., Ltd (KHNP)
    • Shin-Kori NPP #3 & 4
    • Wolsong NPP #1 & 2
    • Hanul NPP #2

Product Sepcification

  • Material : 304SS, 316SS, 316LSS
  • Rated voltage : Normal DC24V

Certification

  • ATEX
  • ISO 9001
  • ISO 45001
  • ISO 14001
  • QHSAS 18001

Supplier Information

Neutron Source Assembly Korea Nuclear Technology Co., Ltd.

Description & Characteristics

As equipment necessary for the initial startup test of nuclear power plant, it generates subcritical nuclear ux in reactor core.

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Jordan Research and Training Reactor (JRTR)
  • Emirates Nuclear Energy Corporation (ENEC)

Product Sepcification

  • 1st wire source (driving wire source) : Cf-252
  • 2nd wire source (recycled wire source) : Sb-Be
  • for APR-1400: Dia. 20 x 3106 L

Certification

  • KS Q ISO 9001:2013

Supplier Information

  • Korea Nuclear Technology Co., Ltd.
  • knt@knt.re.kr
  • 82-42-935-8711
  • www.knt.re.kr

Oil Tank Level Gauage System Samhoi Industrial Co., Ltd.

Description & Characteristics

  • The liquid and vapors within the tank are isolated by a friction-free bellows
  • Should the glass be broken, the bellows prevent any of the contents of the tank from escaping

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • STX
  • Doosan Heavy Industries & Construction Company, Ltd (Doosan)

Product Sepcification

  • Mounting type : side mounting
  • Gauge dia size : 100
  • Bellows matl : HYTREL
  • Alarm point : 610, 710, 810
  • Float arm length : 730mm

Certification

  • ISO 9001(SKQ-10474)
  • ISO 14001(SKE-10294)

Supplier Information

Tubular Type Level Gauge System Samhoi Industrial Co., Ltd.

Description & Characteristics

The tubular glass type is the simplest water(liquid) level gauge used at the 10Kg/Cm2 and under If the installation length is over 1.5m, intermediate joints can be used

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • STX
  • Doosan Heavy Industries & Construction Company, Ltd (Doosan)

Product Sepcification

Tubular type level gauge have as transparent parts a glass tube of 18mm outside diameter. The limitation of the operating condition is due to tempered glass aryl tube or Teflon tube

Certification

  • ISO 9001(SKQ-10474)
  • ISO 14001(SKE-10294)

Supplier Information

  • Samhoi Industrial Co., Ltd.
  • shico007@chol.com
  • 82-55-321-0578
  • www.shico.co.kr

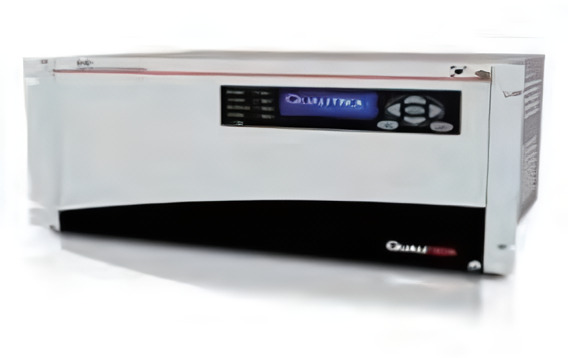

GPS Time Synchronization Facility SHIN MYUNG ELECTRONIC

Description & Characteristics

GPS Master Clock is a device that receives UTC(Global Standard Time) Information transmitted from GPS reception equipment, converts it to Korean standard time, and displays standard time on VFD, synchronizing time of digital and analog clocks, computers, and other industrial facilities

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Korea Electric Power Company (KEPCO)
  • UAE Barakah Nuclear Power Plant (BNPP) #1,2,3,4
  • Hydro power plant, thermal power plant

Product Sepcification

  • Provides various signals such as RS-232C, RS-485, DTMF, IRIG-B, TCP / IP, etc.
  • Improved facility reliability by providing high-precision time
  • Technical support by long experience
  • Application of adapted an algorithm against GPS jamming

Certification

  • KC (Registration of Broadcasting and Communication Equipment)
  • EMI, EMC

Supplier Information

GPS Time Synchronization Facility SHIN MYUNG ELECTRONIC

Description & Characteristics

SMM-5100 compares, analyzes and synchronizes standard time data Of GPS receive signal, and adjusts. the time of each server and client connected to the network to standard time.

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
  • Korea Electric Power Company (KEPCO)
  • UAE Barakah Nuclear Power Plant (BNPP) #1,2,3,4
  • Hydro power plant, thermal power plant

Product Sepcification

  • Provides various signals such as RS-232C, RS-485, DTMF, IRIG-B, TCP / IP, etc.
  • Improved facility reliability by providing high-precision time
  • Technical support by long experience
  • Application of adapted an algorithm against GPS jamming

Certification

  • KC (Registration of Broadcasting and Communication Equipment)
  • EMI, EMC

Supplier Information

In-Core Nuclear Instrument WOOJIN Inc.

Description & Characteristics

  • It is installed in a nuclear reactor of Korean standard nuclear power plant. It is used to comprehend the power distribution of nuclear fuel in the nuclear reactor and to measure the nuclear fuel burn up by detecting neutron occurred during the nuclear fission reaction process of nuclear reactor.

Main Customer

  • Korea Hydro & Nuclear Power Company, Ltd (KHNP)
    • Shin-Hanul #1,2
    • Shin-Kori #1,2,3,4,5,6
    • Shin-Wolsung #1,2
    • Hanbit #3,4,5,6
    • Hanul #3,4,5,6

Product Sepcification

  • Five(5) Rhodium Detectors
  • Thermocouple Type : K type with ground junction
  • Quality Class 1
  • Insulation Resistance shall be no less than 1 x 1012ohms.
  • Steady State Conditions - temperature : 399℃; normal operating range ; 4.4℃ to 371℃. - pressure :175 kgf/㎠a (2500psia); normal range :0 to 158 kgf/㎠a.
  • Core Exit Thermocouple - Temperature : up to 1260℃ - Pressure : 1.1 to 175 kgf/㎠a - Medium : liquid, gas or two phase mixture - Location : top of core
  • Transient Operating Conditions - Operating Fluctuations : The reactor coolant temperature will increase and decrease approximately 5.6℃ in one minute. At the same time, the coolant pressure may vary at a maximum of 7.03 kgf/㎠. - These variations will occur a maximum of 150,000 times during the life of the in-core instrument assembly.
  • Operational Transient Conditions - Transient Conditions / Number of Occurrence - Plant heat up / 75 - Plant cooldown / 75 - RCS leak test / 30 - Reactor trip / 15
  • Steady State Conditions - Temperature : 10 - 49℃ - Pressure : Atmospheric - Relative Humidity : 0 - 100% - Radiation Level : 4x105Gy (4x107Rad). - This value includes gamma and neutron radiation.
  • Model : WJ-ICI-Q
  • Rhodium Detector x 5pcs
  • Background Detector x 1pc
  • K type Thermocouple x 2pcs
  • Central Tube x 1 pc
  • Filler Cable x 8 pcs

Certification

  • KEPIC-EN / MN
  • ISO 9001 / 14001
  • OHSAS 18001

Supplier Information

Smart Transmitter (APT3700N) (Differential, Gauge, Absolute Pressure) DUON System Co., Ltd.

Description & Characteristics

  • APT3700N is an intelligent pressure transmitter specialized to nuclear power plant. It is equipped in Shin-Kori, Kori, Hanul, Shin-Hanul, Wolseong and Hanbit nuclear power plants.
  • It is installed at field for measuring the differential pressure, Gauge pressure, absolute pressure, level and differential flow and was also exported to UAE BNPP and experimental nuclear reactor in Jordan. With high accuracy and supporting Hart protocol, it is providing convenience in maintenance on site.

Main Customer

  • Kori, Shin-Kori, Hanul, Shin-Hanul, Wolseong, Shin-Wolseong, and Hanbit nuclear power plants(Korea)
  • UAE Barakah Nuclear Power Plant (BNPP), Jordan experimental nuclear reactor
  • The Construction Nuclear Power Plant. Shin-Kori #1,2, Shin-Kori #3,4, Shin-Hanul #1,2, Shin-Wolseong #1,2, BNPP #1~4, Shin-Kori #5,6
  • Besides, our Products have been Supplying to Operating Nuclear Power Plant in Korea

Product Sepcification

  • Product Specification
  • Quality Class Q, A(T,R), S
  • Seismic Category Ⅰ/Ⅱ/Ⅲ
  • Radiation 1x102 Gy
  • Power & Output 24V DC & 4~20mA, HART
  • APT3700N-G (GAUGE PRESSURE TRANSMITTER)
  • APT3700N-D (DIFFERENTIAL PRESSURE TRANSMITTER)
  • APT3700N-A (ABSOLUTE PRESSURE TRANSMITTER)

Certification

  • KEPIC-EN, ISO9001, 18001, 45001, IP66/67, NEMA 4X, IEEE, IEC, EN

Supplier Information

  • DUON System Co., Ltd. www.autrol.com
  • autrol@duon.co.kr
  • 82-31-389-6100
  • www.autrol.com

Smart Page Phone System (Indoor) GSC Co., Ltd.

Description & Characteristics

  • This equipment is an indoor wall type remote management page phone installed in power plants and other plants, and is used for everyday tasks such as operation and maintenance
  • All call stations and calls can be made from any page phone installed on the site, especially when listening to instructions by group or simultaneously

Main Customer

  • Korea Western Power Co., Ltd (WP)
  • Korea Midland Power Co., Ltd (KOMIPO)
  • Korea South-East Power Co., Ltd (KOEN)

Product Sepcification

  • Amplifier output : Digital 25W
  • Command transmission line : 1 to 3 lines
  • Command receiving line : 1 line can be selected out of 1 to 3 incoming lines
  • Call Line : 5 lines
  • Frequency characteristics : 300 to 3400 Hz (±3 dB)
  • Output impedance : 4 to 8 ohm

Certification

  • I 2012-753

Supplier Information

  • GSC Co., Ltd.
  • gsc5@chol.com
  • 82-31-925-6232
  • www.gsc5.kr

Smart Page Phone System (Outdoor) GSC Co., Ltd.

Description & Characteristics

  • This equipment is an outdoor wall type remote management page phone installed in power plants and other plants, and is used for everyday tasks such as operation and maintenance
  • All call stations and calls can be made from any page phone installed on the site, especially when listening to instructions by group

Main Customer

  • Korea Western Power Co., Ltd (WP)
  • Korea Midland Power Co., Ltd (KOMIPO)
  • Korea South-East Power Co., Ltd (KOEN)

Product Sepcification

  • Amplifier output : Digital 25W
  • Command transmission line : 1 to 3 lines
  • Command receiving line : 1 line can be selected out of 1 to 3 incoming lines
  • Call Line : 5 lines
  • Frequency characteristics : 300 to 3400 Hz (±3 dB)
  • Output impedance : 4 to 8 ohm

Certification

  • I 2012-753

Supplier Information

  • GSC Co., Ltd.
  • gsc5@chol.com
  • 82-31-925-6232
  • www.gsc5.kr
Goto History Slider Control
BACK TO TOP
