Information
Electrical

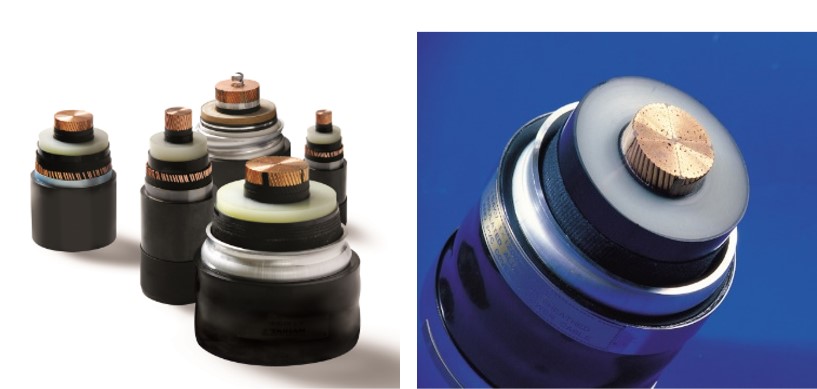

345kV 2500SQ XLPE Cable Taihan Electric Wire Co., Ltd.
Description & Characteristics

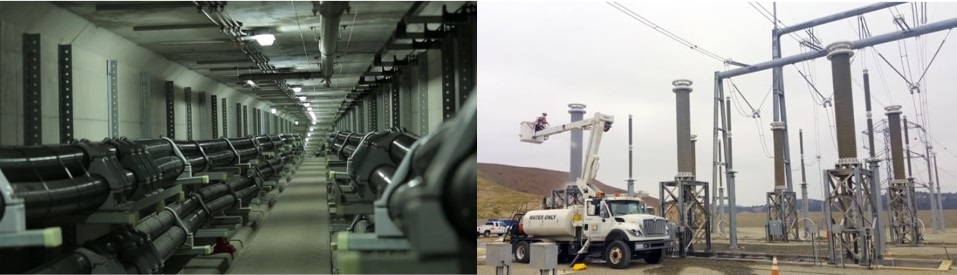

345kV XLPE cable is an underground cable used to
transmit electricity produced at nuclear power plants,
which is insulated with cross-linked polyethylene(PE).
Eliminating the use of insulating oil reduces the risk of
environmental pollution and fire outbreak and greatly
improves heat resistance to increase the allowable current.
In addition, the cable is easily constructible since its equipment is simple. Taihan has completed commercialization up to 500kV XLPE cables, the highest grade of underground transmission cables, and is supplying cables to the nuclear power plant market in various countries.
In addition, the cable is easily constructible since its equipment is simple. Taihan has completed commercialization up to 500kV XLPE cables, the highest grade of underground transmission cables, and is supplying cables to the nuclear power plant market in various countries.
Main Customer
- KHNP (Korea Hydro & Nuclear Power Co., Ltd.) / Korea
- Korea Electric Power Company (KEPCO) / Korea
- Samsung Electronics Co. / Korea
Product Sepcification
- 345kV 2500SQ XLPE Cable
- XLPE : Cross linked polyethylene insulated cable
- Insulator thickness: 27mm, Aluminum clad thickness:3.2mm, Max. outside diameter: 165mm
Certification
- ISO9001
- KS
- UL
- KEMA
- JET-PSE
- GOSTR
Supplier Information
- Taihan Electric Wire Co., Ltd.
- semini40@taihan.com
- 82-2-316-9114
- www.taihan.com
345kV 2500SQ XLPE Cable Accessories Taihan Electric Wire Co., Ltd.
Description & Characteristics
Accessories used in 345kV XLPE cables require advanced
technology and construction know-how. On the basis of its
own technology, Taihan has been making every endeavor to
develop cable accessories and producing stable connection
equipment suitable for its cables since the 1980s. Taihan
produces terminations such as outdoor termination(EB-A)
and gas-insulated termination (EB-G), depending on the
type of terminal connected to the underground cable,
and provides various types of XLPE joints tailored to the
purpose of use.
Main Customer
- Korea Hydro & Nuclear Power Co., Ltd. (KHNP) / Korea
- Korea Electric Power Company (KEPCO) / Korea
- Samsung Electronics Co. / Korea
Product Sepcification
- 345kV 2500SQ XLPE Cable Accessories
- EBA : Bushing material(Polymer), Stress cone material(Liquid Silicone Rubber), Insulating oil(Polybutene oil)
- EBG : Epoxy Bushing(1170 ±10mm), Stress cone material(Liquid Silicone Rubber)
- Bushing length(4,647±70mm), Top inside diameter(PCD Ф232±10mm), Bottom inside diameter(PCD Ф605±20mm)
Certification
- ISO9001
- KS
- UL
- KEMA
- JET-PSE
- GOSTR
Supplier Information
- Taihan Electric Wire Co., Ltd.
- semini40@taihan.com
- 82-2-316-9114
- www.taihan.com

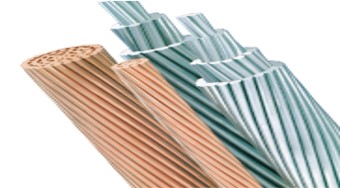

Annealed Copper Stranded Wire (AS) DAEWON CABLE CO., LTD.
Description & Characteristics
Before stranding, the requirements of annealed copper wire
of the stranded conductor shall conform to IEC 60228.
The wires shall be concentric, uniformly and tightly stranded.
The direction of lay shall be reversed in successive layers and the direction of lay of the outer layer shall be left-hand unless otherwise specified.
Welds and brazes may be in wires prior to final drawing.
The wires shall be concentric, uniformly and tightly stranded.
The direction of lay shall be reversed in successive layers and the direction of lay of the outer layer shall be left-hand unless otherwise specified.
Welds and brazes may be in wires prior to final drawing.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP) / Korea
Product Sepcification
- Nominal sectional area (mm2) : 0.5mm2 ~ 1000mm2
- Minimum number of wires : 7 ~ 91
- Approx. overall diameter (mm) : 0.96 ~ 41.6
- Max. conductor resistance at 20â (ohm/km) : 36 ~ 0.0176
Certification
- ISO9001
- ISO14001
- OHSAS 18001
Supplier Information
- DAEWON CABLE CO., LTD.
- sinhs0113@dwcable.com
- 82-2-3406-3400
- www.daewoncable.co.kr
Power/Control/Instrumentation Cable for Nuclear Power Plant TMC Co., Ltd.
Description & Characteristics
It is most important to secure safety for nuclear power
plant cable against an accident of nuclear power plant.
To this end, heat resistance and radiation resistance etc. are required. Especially, Class 1E cable being pulled in the reactor has to be completed for environmental qualification in accordance with IEEE 323, and 383, TMC's cable for nuclear power plant was completed for design life over 60years and environmental qualification.
To this end, heat resistance and radiation resistance etc. are required. Especially, Class 1E cable being pulled in the reactor has to be completed for environmental qualification in accordance with IEEE 323, and 383, TMC's cable for nuclear power plant was completed for design life over 60years and environmental qualification.
Main Customer
- Korea Hydro & Nuclear Power (KHNP)
- Shin Kori 5, 6 Nuclear Power Plant (E241, E242) (2019.08 - 2022. 081)
- Korea Radioactive Waste Agency (KORAD)
- Radioactive Waste Disposal Facility (2017.09 - 2021.122)
- Tunnel Drain System and Power Supply System Redundancy (2017.12 - 2020.123)
Product Sepcification
- Design Features
- TMC Nuclear cable has certified Aging test & Aged Flame test
- Code & Standard : IEEE 383(2003ed)
- Aging test (Functional) : 60 years aging test (Voltage withstand + Insulation resistance)
- Flame test : Aged & Unaged VTFT (IEEE 1202) & VFT (UL 1581)
â» Aged condition : 60 years (Normal radiation + Thermal aging)
- Product Specification
- Dimension & Weight & Capacity : According to clientâs request
- Material : Conductor (Tinned copper wire), Insulation (EPR, Ethylene Propylene Rubber), Jacket (FR-PO, Flame Retardant Poly-Olefin)
- Rated Voltage : 600V ~ 15kV
Certification
- ISO 9001
- ISO 14001
- OHSAS 18001
- KEPIC
- Dt&C (Digital Technology & Certification)
- Aged & Unaged VTFT & VFT
Supplier Information
- TMC Co., Ltd.
- hyang@tmc-cable.com
- 82-41-589-6500
- www.tmc-cable.com

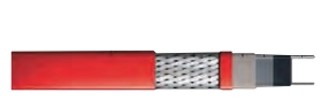

Self-Regulating Heating Cable (Freeze Protection & Temperature Maintenance) Fine Korea Co., Ltd.
Description & Characteristics
It resists freezing and maintains temperature for hot water
supply pipes
Main Customer
Product Sepcification
- Copper bus wire : 16AWG
- Nominal power output : 10,30 W/M - at 10°C
- Max. maintenance temperature : 85°C
- Max. intermittent exposure temperature : 100°C
- T-rating : T5
Certification
- FM
- EX
- KOSHA
Supplier Information
- Fine Korea Co., Ltd.
- finex97@naver.com
- 82-32-819-0872
- www.finex97.co.kr
Self-Regulating Heating Cable (Freeze Protection) Fine Korea Co., Ltd.
Description & Characteristics
It generates heat with a semi-conductor materials, showing
a characteristic of PTC (Positive Temperature Coefficient)
PTC is characterized by the power output of the heating cable adjusted to compensate for variations in ambient temperature
The cable produces more heat if the temperature drops and less heat if the temperature rises
PTC is characterized by the power output of the heating cable adjusted to compensate for variations in ambient temperature
The cable produces more heat if the temperature drops and less heat if the temperature rises
Main Customer
Product Sepcification
- Nominal power output : 10, 16, 24, 30 W/M at 10°C
- Max. maintenance temperature : 65°C
- Max. intermittent exposure temperature : 85°C
- T-rating : T6
Certification
- FM
- EX
- KOSHA
Supplier Information
- Fine Korea Co., Ltd.
- finex97@naver.com
- 82-32-819-0872
- www.finex97.co.kr
Self-Regulating Heating Cable (Temperature Maintenance) Fine Korea Co., Ltd.
Description & Characteristics
It is capable of maintaining the temperature of pipes and
plumbs in both a chemical plant and a fodder plant, using
the PTC (Positive Temperature Co-efficient) principle
PTC is characterized by the power output of heating cable adjusted to compensate for variations in ambient temperature
PTC is characterized by the power output of heating cable adjusted to compensate for variations in ambient temperature
Main Customer
Product Sepcification
- Nominal power output : 30,40,50 W/M at 10°C
- Max. maintenance temperature : 90°C
- Max. intermittent exposure temperature : 100°C
- T-rating : T5
Certification
- FM
- EX
- KOSHA
Supplier Information
- Fine Korea Co., Ltd.
- finex97@naver.com
- 82-32-819-0872
- www.finex97.co.kr
MEGA VATOR Shin Han Elevator Co., Ltd.
Description & Characteristics

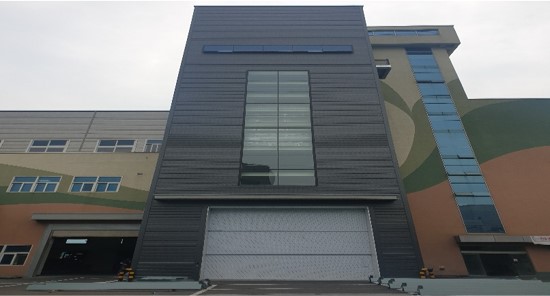

Up to now, most of the equipment for high-rise factories
(semiconductors) has been carried by heavy-duty cranes.
Permanent ultra-high load with secure safety for lifting logistics (machinery, equipment) due to frequent accidents and cost reduction By developing a 30 ton cargo lift.
Permanent ultra-high load with secure safety for lifting logistics (machinery, equipment) due to frequent accidents and cost reduction By developing a 30 ton cargo lift.
Main Customer
- Samsung Electronics Co.
- Samsung Construction & Trading Corporation (Samsung C&T)
- LG Display
- SK Hynix
- Korea Hydro & Nuclear Power Co., LTD (KHNP)
- - Shin-Kori NPP #5,6
Product Sepcification
- Rated Load : 1000 ~ 30000kg
- Door Type : 2co,4co, 2up,3up,4up
- Car Dimension(Max) : (W)6000 X (D)10000 X (H)6000
- Opening(Max) : (W)6000 X (H)6000
Certification
- ISO 9001
- ISO 14001
Supplier Information
- Shin Han Elevator Co., Ltd.
- factory@shelevator.co.kr
- 82-31-981-4517
- www.shelevator.co.kr

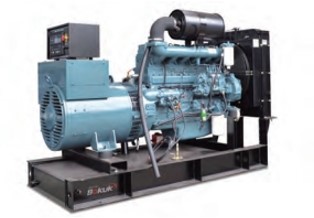

Diesel Engine Generator BOKUK Electric Ind. Co., Ltd.
Description & Characteristics
Automatic engine starting and stopping
Graphical icon type LCD display
PC configurable via MS-Windows based software
Simple selector switching type control operation
Graphical icon type LCD display
PC configurable via MS-Windows based software
Simple selector switching type control operation
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Jordan JRTR Nuclear Power Research Institute
- UAE Barakah Nuclear Power Plant (BNPP)
Product Sepcification
- STEEL BASE FRAME
- Heavy-duty fabricated steel base frame for completer generator set
- Anti vibration pads or spring between the engine and alternator feet and the base frame
- ALTERNATOR
- BOKUK alternator
- Brushless, single bearing system, 4poles.
- Insulation Class H
- Degree of protection IP20 (standard)
- Aux - winding type exciting system
- Epoxy resins and vacuum impregnation
- Precise automatic voltage regulator
- ENGINE
- DOOSAN diesel engine
- Four cycle, water cooled
- Direct injection fuel system
- 24V D.C starting and charging alternator
- Replaceable fuel filter, oil filter and dry element air filter
- Direct coupled cooling radiator and fan
- Starting battery (with lead acid) including rack and connection cables
- Flexible fuel connection hoses and manual oil sump drain valve
- Industrial type exhaust silencer and bellows
- Jacket water heater
Certification
- ISO 9001
- ISO 14001
- OHSAS 18001
Supplier Information
- BOKUK Electric Ind. Co., Ltd.
- bokuk@bokuk.co.kr
- 82-53-610-4180
- www.bokuk.co.kr
Emergency Diesel Generator Excitation System Inspecting & Testing Device (ETS-5000) E2S CO., LTD.
Description & Characteristics

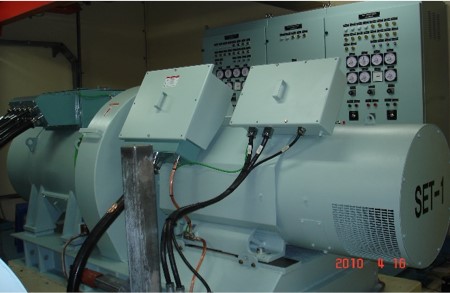

Emergency diesel generator excitation system inspection
& testing device carries out each card testing composing
excitation system, and it can not only test the integrity of
each card but also test various controls and protection
functions etc. of excitation system by injecting simulation
signal corresponding to generator signal at the situation of
separating excitation system from generator. Particularly,
as it can test the function of excitation system for a short
time without driving diesel engine, it can be tested easily
even when problem occurs or at normal times.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
Product Sepcification
- Test function of each card of excitation controller
- Excitation linked test function
- Checking test of power supply of controller
- EDG start and stop test
- Operation range checking test
- Mode switchover test
- Step response test
- Under excitation limit test
- Total test function
- Save function of test history data by card
Certification
- KEPIC-EN
- KS Q ISO 9001: 2011
- CE (Digital Excitation Control System)
Supplier Information
- E2S CO., LTD.
- e2s@e2s.co.kr
- 82-2-488-0586
- www.e2s.co.kr
Emergency Diesel Generator Excitation System of Nuclear Power Plant GEUMHWA C&E CO., LTD.
Description & Characteristics
As an emergency diesel generator excitation system which
is a safety grade of nuclear power plant, it applied digital
triple controller in consideration of importance and rectifier
is composed of dualization.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
Product Sepcification
- Digital TMR triple controller three phase of radio wave Thyristor phase controlling rectifier
- Dualization of rectifier (N+1 Redundancy)
- A function block type of program following IEC 61131-3 is used.
- It satisfies a quick response excitation system of IEEE 421.
Certification
- ISO 9001: 2009
- ISO 14001: 2009
- K-OSHMS 18001
Supplier Information
- GEUMHWA C&E CO., LTD.
- 82-31-737-9388
- www.geumhwacne.co.kr
Generator Excitation System Test Simulator E2S CO., LTD.
Description & Characteristics
It is a real time simulation system that can generate the
standard simulation signals on its own to inspect the
excitation system
It generates 3-phase voltage simulation signals as well as 3-phase current simulation signals corresponding to the outputs of a generator, and interconnects with an external device(excitation system) in real time to simulate operation of the same condition as if it is connected to the actual generator and the power system
It generates 3-phase voltage simulation signals as well as 3-phase current simulation signals corresponding to the outputs of a generator, and interconnects with an external device(excitation system) in real time to simulate operation of the same condition as if it is connected to the actual generator and the power system
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Doosan Heavy Industries & Construction Company, Ltd (Doosan)
Product Sepcification
- Diagnosis and adjustment of excitation system
- Adjusting function of output of mock signal
- AVR, MVR operation test
- Step Response test of excitation system
- V/Hz limit test
- loss of field test
- PSS test
- Under excitation limit test
Certification
- ISO 9001
- INNO-BIZ
- Direct Production Confirmation Certificate
- VENTURE
Supplier Information
- E2S CO., LTD.
- e2s@e2s.co.kr
- 82-2-488-0586
- www.e2s.co.kr
Motor Generator Set HYOSUNG HEAVY INDUSTRIES
Description & Characteristics
Hyosung Heavy Industries Corporation provide the Motor
Generator Set as a main power source of CEDM(Control
Element Drive Mechanism), a key facility in nuclear power plant.
Motor Generator Set consists of a motor as the driver, a synchronous generator and these control panels.
The MG set is specially designed and manufactured for nuclear power plants.
The products provided by Hyosung are guaranteed very good performance, durability and excellent after-sales service.
Motor Generator Set consists of a motor as the driver, a synchronous generator and these control panels.
The MG set is specially designed and manufactured for nuclear power plants.
The products provided by Hyosung are guaranteed very good performance, durability and excellent after-sales service.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- 14-power plant / Korea
- Korea Electric Power Company (KEPCO)- UAE Barakah Nuclear Power Plant (BNPP)
Product Sepcification
[Motor Generator set]
- Rating
- Motor : 350HP
- Generator : 500kVA, 240V, 50/60Hz
- Enclosure : Drip-proof or Fully-guarded
- Insulation Class / Temperature Rise Class : F / B
- Vibration : 2.3 mm/s
- Noise : mean. 85 dB(A)
- Electrical Control
- Motor : 460V, NEMA Size 6 Starter for Ride-thru
- Generator : 240/139V, 1600A ACB for Output breaker
- Electrical Protection
- Motor : 27, 49
- Generator : 27, 32, 40, 50/51, 59, 81, 87
- Enclosure : NEMA TYPE 2
- Solid-state AVR with voltage adjusting potentiometer
- Synchronizing equipment for parallel running
Certification
- ISO9001
- ISO14001
- OHSAS 18001
Supplier Information
- HYOSUNG HEAVY INDUSTRIES
- changin@hyosung.com
- 82-55-279-7182
- www.hyosungheavyindustries.com

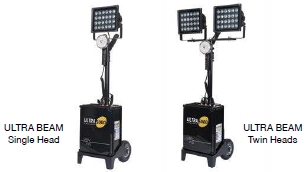

All-weather LED Working Light UNIONLIGHT Co., Ltd.
Description & Characteristics
reak down the boundary between day and nightâ
AC/DC Dual Use 1) This product can be charged with AC220V/DC48V and it can be used continuously with AC power. 2) In case of an emergency, it is used as a hand cart with the internal battery power.
Place of Usage - Military, Firefighting safety device, Police(inspection), Shipment, Hospital, Construction, Subway.
AC/DC Dual Use 1) This product can be charged with AC220V/DC48V and it can be used continuously with AC power. 2) In case of an emergency, it is used as a hand cart with the internal battery power.
Place of Usage - Military, Firefighting safety device, Police(inspection), Shipment, Hospital, Construction, Subway.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Korea East-West Power Co., Ltd (EWP)
- Korea South-East Power Co., Ltd (KOEN)
- Korea Electric Power Company (KEPCO)
- Ministry of National Defense
Product Sepcification
Certification
- CE : AN 50455034 0001
- KC
- ISO 9001
Supplier Information
- UNIONLIGHT Co., Ltd.
- unionlight@univis.co.kr
- 82-2-906-0700
- www.univis.co.kr
High-Radiation Area Lighting Solux Co., Ltd
Description & Characteristics
While an illumination lighting used in a general industrial area,
residence area, and the commercial area has replaced from the
existing lighting source such as fluorescent lighting to LED, a
general LED lighting was impossible to apply to a nuclear power
plant, especially a radiation area due to its leakage of gamma rays.
Therefore Solux has developed an original technology about LED
packages that works even under circumstances exposed to the
gamma rays without any problem and LED lightings that remove
prohibition materials on use by each section.
Main Customer
- Korea Hydro & Nuclear Power Co., LTD (KHNP) - Shin-Kori NPP #5,6
Product Sepcification
Certification
- ISO 9001: 2009
- ISO 9001: 2008
- ISO 14001: 2009
- ISO 14001: 2004
Supplier Information
- Solux Co., Ltd
- kkn@solux.co.kr
- 82-2-2668-2600
- www.solux.co.kr

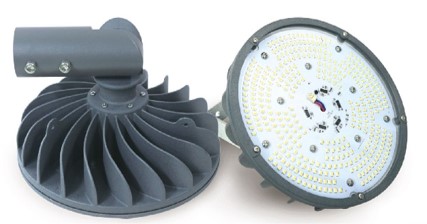

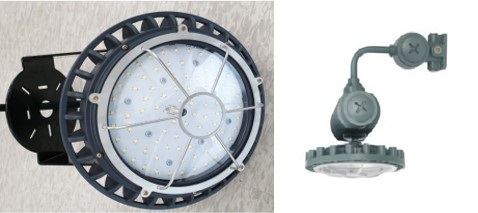

LED High-Bay Lights LEDIX Co., Ltd.
Description & Characteristics
Metal Halide Lamp replacement (such as industrial, outdoor
and indoor gymnasium, park, etc.)
Lifetime is extended to 3 to 4 times more than conventional LED lighting by adopting direct AC-type driver IC
Minimum maintenance costs because SMPS replacement is unnecessary
Easy ways to install under variety of environments (chain-type, conduit, bracket etc.)
Lifetime is extended to 3 to 4 times more than conventional LED lighting by adopting direct AC-type driver IC
Minimum maintenance costs because SMPS replacement is unnecessary
Easy ways to install under variety of environments (chain-type, conduit, bracket etc.)
Main Customer
- Korea South-East Power Co., Ltd (KOEN) / Korea
- Korea Midland Power Co., Ltd (KOMIPO) / Korea
- KEPCO Plant Service & Engineering Company, Ltd (KEPCO KPS) / Korea
- Korea East-West Power Co., Ltd (EWP) / Korea
- Korea Southern Power Co., Ltd (KOSPO) / Korea
Product Sepcification
- Adopts circuit technology with optimized heat dissipation system(patent No. 10-1407687)
- Housing Materials : Aluminum and PC
- Dimension : Ã256 x 82
- Power : 80W, 100W, 120W
- Voltage & Frequency : 220V, 60Hz
- Luminous Efficiency : â¥115lm/W
- Color Rendering Index(CRI) : â¥75Ra
- Correlated Color Temperature(CCT) : 5,700K
- Power Factor(PF) : â¥0.95
- Type : Chain-type, Braket-type, conduit-type
Certification
- ISO9001
- ISO14001
- CE
- KC
- KS
- High Efficiency apparatus
Supplier Information
- LEDIX Co., Ltd.
- engle001@hanmail.net
- 82-42-671-3716
- www.ledix.co.kr

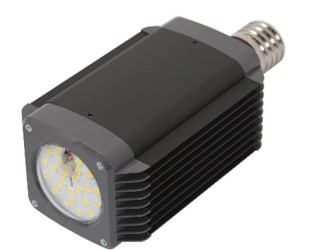

LED Industrial Lights LEDIX Co., Ltd.
Description & Characteristics
Optimum heat dissipation effect with container heat
dissipation technology
Applying single power stage drive circuit technology
Minimized lightweight compared to LED light
Simplifying installation due to High power socket type
Applying single power stage drive circuit technology
Minimized lightweight compared to LED light
Simplifying installation due to High power socket type
Main Customer
- BSR VIETNAM JSC
- PT MCA / INDONESIA
- PT SULINDO PUTRA / INDONESIA
Product Sepcification
- Housing Materials : Aluminum(A1079, A6063) and PC
- Aluminum Flat Heat Pipe Heat Dissipation Technology
- Dimension & Weight : 110 * 90 * 250 (mm), 600g
- Power : 50W
- Voltage & Frequency : 220V, 60Hz
- Luminous Efficiency : â¥120lm/W
- Color Rendering Index(CRI) : â¥80Ra
- Correlated Color Temperature(CCT) : 5,000K
- Upward Light : U2 (â¤50lm)
- Power Factor(PF) : â¥0.95
- Type : E26, E39 Socket
Certification
- ISO9001
- ISO14001
- KC
- High Efficiency apparatus
Supplier Information
- LEDIX Co., Ltd.
- engle001@hanmail.net
- 82-42-671-3716
- www.ledix.co.kr
Waterproof LED Emergency Light UNIONLIGHT Co., Ltd.
Description & Characteristics
uto operation during a power outage, emergencyâ
Operation check switch: Press the test switch while charging for instant lighting
Lamp angle adjustment (adjustment of head angle)2 lamps can be used at the same time or separately.
The waterproof, sealed design and structure guarantees functionality and long lifespan in all types of environment. âRemote control available (Battery Status & Operation)â
Battery protection circuit design overcharge prevention, protection circuit was adopted for battery protection.
Operation check switch: Press the test switch while charging for instant lighting
Lamp angle adjustment (adjustment of head angle)2 lamps can be used at the same time or separately.
The waterproof, sealed design and structure guarantees functionality and long lifespan in all types of environment. âRemote control available (Battery Status & Operation)â
Battery protection circuit design overcharge prevention, protection circuit was adopted for battery protection.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Korea East-West Power Co., Ltd (EWP)
- Korea South-East Power Co., Ltd (KOEN)
- Korea Electric Power Company (KEPCO)
Product Sepcification
- Material : ABS, STEEL (powder coating) , IP 66
- Weight : 2.8kg
- Battery : Lithium-ion phosphate 25.2V/2600mAh
- Size: 279(W)Ã320(H)Ã132(D) mm
- LED 15W x 2 (Charging time : 12h)
- Operating time ( Battery ) : 2 Hour + 2 Hour
Certification
- KC
- IP 66
Supplier Information
- UNIONLIGHT Co., Ltd.
- unionlight@univis.co.kr
- 82-2-906-0700
- www.univis.co.kr

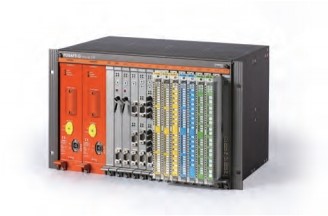

Safety Grade PLC POSAFE-Q SOOSAN ENS Co., Ltd.
Description & Characteristics
Controller for nuclear power plant with safety grade
Success of localization of controller by achieving licensing from Council for Nuclear Safety and securing Q grade for nuclear power plant
KEPIC-EN Certification (1st grade logic unit for nuclear power plant)
Provision of 22 kinds of module as well as a process module.
Success of localization of controller by achieving licensing from Council for Nuclear Safety and securing Q grade for nuclear power plant
KEPIC-EN Certification (1st grade logic unit for nuclear power plant)
Provision of 22 kinds of module as well as a process module.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
Product Sepcification
- 19âstandard, W*H*D = 482.6 x 281.35 x 294mm
- Supplying 22 module s such as proce s s module, communication module, digital/analog input-output module, special module and so on
- Supplying Software Engineering Tool
- Design satisfying the regulations and Specifications for nuclear power plant (IEEE 603, IEEE 7-4.3.2, etc.)
- Securing the quality of Class 1E H/W and Safety-Critical S/W
- Provision o f f unctions o f m aintenance a nd d iverse online self diagnosis
Certification
- KEPIC
- ISO 9001: 2008
- ISO 14001: 2004
- OHSAS 18001: 2007
Supplier Information
- SOOSAN ENS Co., Ltd.
- kykwom@soosan.co.kr
- 82-52-258-3860
- www.soosanens.co.kr

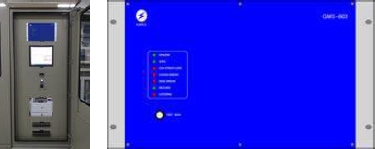

Fire Alarm Control Panel GFS Co.
Description & Characteristics
It is a fir alarm control panel that monitors the situation in
real time
The system enables monitoring and controling of the receiver status and operation status in all of the fire prevention facilities
Simultaneous use of the Touch Screen and Mouse control system
Window-based operating system
The system enables monitoring and controling of the receiver status and operation status in all of the fire prevention facilities
Simultaneous use of the Touch Screen and Mouse control system
Window-based operating system
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Korea Electric Power Company (KEPCO)
- Samsung Heavy Industrial Co.
- Hyundai Engineering & Construction Company, Ltd (Hyundai E&C)
- Incheon Airport Co.
Product Sepcification
- System and floor plan can be implemented in graphic detail 1024x768 High-definition graphics implementation
Certification
- ISO 9001
- ISO 14001
- UL (Type B)
- FM (Type B)
Supplier Information
- GFS Co.
- 82-31-850-0119
- www.gfs.co.kr

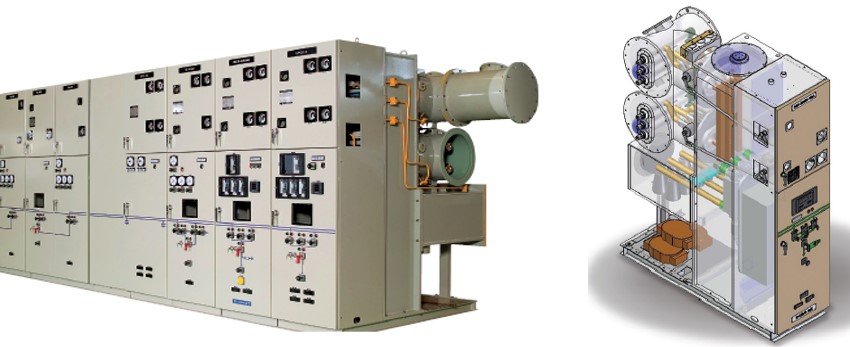

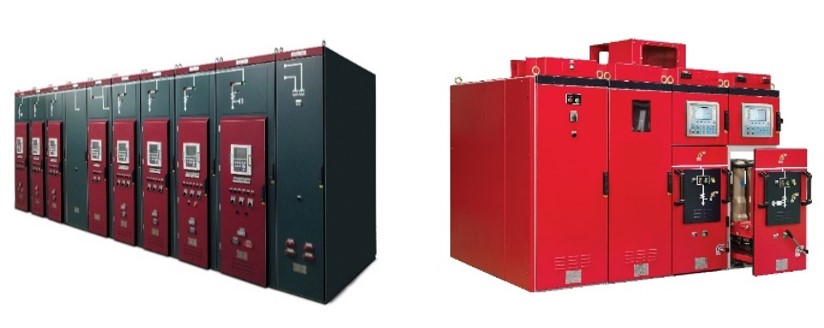

Nuclear Panel Hansung Industries
Description & Characteristics
It is a panel that controls general functions, such as opening,
closing, safety, metering, and handling, of the electric
power into a power substation
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Hyundai Electric & Energy Systems Co.
- Hyosung Heavy Industries Co.
Product Sepcification
Certification
- ISO 9001
- ISO 14001
- ISO 45001
- KEPIC-EN
Supplier Information
- Hansung Industries
- hansoung10@hanmail.net
- 82-54-742-0840
- www.han-sung.kr

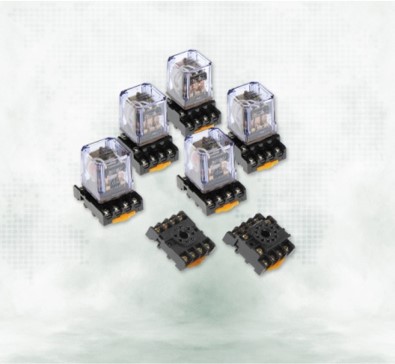

Control Relay YongSung Electric Co., Ltd
Description & Characteristics
Widely using for general control circuit which can switch 7A load
Using Ag on contact parts to lower contact resistance
Using Ag on contact parts to lower contact resistance
Main Customer
- Korea Electric Power Company (KEPCO)
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Hyundai
- Doosan
- Westinghouse Electric Corporation (WEC)
Product Sepcification
- Condition : Normal
- Duration : 40years
- Pressure : 0 pisg
- Temperature : Max 40°C
- Relative humidity : Max 90%
- Radiation : 10 Gy, Seismic SKN 3&4 Aux, Building 156â
Certification
- ISO9001
- KEPIC-EN
Supplier Information
- YongSung Electric Co., Ltd
- overseas@yongsungelec.co.kr
- 82-2-2212-7324
- www.yongsungelec.co.kr
Disturbance Fault Recorder KoryoTNC
Description & Characteristics
GPS-605 GPS Time Sync Units are the most compact and
accurate Time Synchronization Units developed for various
industries like the Power and Process industry.
It has the options of various output types, required for interface with various systems and devices. GPS Time Sync Unit is designed for Reliability and provides base time accuracy of 150nsec.
It has the options of various output types, required for interface with various systems and devices. GPS Time Sync Unit is designed for Reliability and provides base time accuracy of 150nsec.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP) / Korea
- Korea Electric Power Company (KEPCO) / Korea
- Korea Western Power Co., Ltd (WP) / Korea
- Korea Midland Power Co., Ltd (KOMIPO) / Korea
- Korea Southern Power Co., Ltd (KOSPO) / Korea
- Korea East-West Power Co., Ltd (EWP) / Korea
- Korea South-East Power Co., Ltd (KOEN) / Korea
Product Sepcification
- Features
- Cost effective solution
- 6 digits, 0.56 7-segment LED Display for Time
- 12 Satellite parallel tracking
- Universal (AC/DC) Power supply input
- Supports synchronization of PMU compliant devices via
- NTP/SNTP protocol
- All weather water proof antenna
- Synchronization software for Server & Client
- Supporting Protocols : IRIG-B 000, SNTP/NTP
Certification
- ISO9001
- ISO14001
Supplier Information
- KoryoTNC
- limboud@koryotnc.com
- 82-32-243-1009
- www.koryotnc.com
Disturbance Fault Recorder KoryoTNC
Description & Characteristics
For the supply/demand of electric energy, the raised
problem is to the supply qualified electricity to users safely
and confidentially. Accordingly, it is earnestly required to
analyze the quality of electricity and to find the cause of
fault obstructed confidence by rapid analysis of them.
GMS-603 Recorder is the General Power Analysis System which has such functions, and acquire the timesynchronized data using GPS and store each parameter with mutual comparison by on-line transmitting it in real time.
Moreover, GMS furnish the optimum solutions for the status analysis of power system which have functions to analyze cause of fault by recording fault status and operating conditions of each protection devices when the power system has fault, and to forecast accident and system fluctuation by detecting, analyzing and estimating the previous data at fluctuation and unstable conditions of power system.
GMS-603 Recorder is the General Power Analysis System which has such functions, and acquire the timesynchronized data using GPS and store each parameter with mutual comparison by on-line transmitting it in real time.
Moreover, GMS furnish the optimum solutions for the status analysis of power system which have functions to analyze cause of fault by recording fault status and operating conditions of each protection devices when the power system has fault, and to forecast accident and system fluctuation by detecting, analyzing and estimating the previous data at fluctuation and unstable conditions of power system.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP) / Korea
- Korea Electric Power Company (KEPCO) / Korea
- Korea Western Power Co., Ltd (WP) / Korea
- Korea Midland Power Co., Ltd (KOMIPO) / Korea
- Korea Southern Power Co., Ltd (KOSPO) / Korea
- Korea East-West Power Co., Ltd (EWP) / Korea
- Korea South-East Power Co., Ltd (KOEN) / Korea
Product Sepcification
- Element : Level/ROC/Swing/etc.
- Level/ROC trigger by each channel
- Level/ROC/Swing trigger by each feeder
- Level/ROC/Swing trigger by Frequency
- Manual trigger
- Cross trigger
- Remote trigger
- IEEE C37.111 (2013) Standard common Format for transient data exchange [COMTRADE] for power system
- IEEE C37.118 (2011) IEEE Standard for Synchro-phasors for Power System
Certification
- ISO9001
- ISO14001
Supplier Information
- KoryoTNC
- limboud@koryotnc.com
- 82-32-243-1009
- www.koryotnc.com
Control Switch YongSung Electric Co., Ltd
Description & Characteristics
Various type, dimension, operating method
Various circuit configuration available
Best selection for control panel, equipment, machinery etc.
Various circuit configuration available
Best selection for control panel, equipment, machinery etc.
Main Customer
- Korea Electric Power Company (KEPCO)
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Hyundai
- Doosan
- Westinghouse Electric Corporation (WEC)
Product Sepcification
- Duration: 40 years
- Pressure: 0 psig (Atmospheric)
- Temperature: Max. 40ËC (104ËF )
- Relative humidity: Max. 90%
- Radiation: 10 Gy
- Seismic: SKN 3 & 4 Aux. building 156â
- Code & Standard
- IEEE 323:1983(R1996)/2003
- IEEE 344:1987(R1993)/2004
- KEPIC END 1100:2000/2005
- KEPIC END 2000:2000/2005(06 2nd add.)
Certification
- ISO9001
- KEPIC-EN
Supplier Information
- YongSung Electric Co., Ltd
- overseas@yongsungelec.co.kr
- 82-2-2212-7324
- www.yongsungelec.co.kr
Control Switch YongSung Electric Co., Ltd
Description & Characteristics
Various type, dimension, operating method
Various circuit configuration available
Best selection for control panel, equipment, machinery etc.
Various circuit configuration available
Best selection for control panel, equipment, machinery etc.
Main Customer
- Korea Electric Power Company (KEPCO)
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Hyundai
- Doosan
- Westinghouse Electric Corporation (WEC)
Product Sepcification
- Duration: 40 years
- Pressure: 0 psig (Atmospheric)
- Temperature: Max. 55ËC (131ËF )
- Relative humidity: Max. 95%
- Radiation: 1 X 10³ Gy
- Seismic: SKN 3 & 4 Aux. building 156â
- Code & Standard
- IEEE 323:1983(R1996)/2003
- IEEE 344:1987(R1993)/2004
- KEPIC END 1100:2000/2005
- KEPIC END 2000:2000/2005(06 2nd add.)
Certification
- ISO9001
- KEPIC-EN
Supplier Information
- YongSung Electric Co., Ltd
- overseas@yongsungelec.co.kr
- 82-2-2212-7324
- www.yongsungelec.co.kr

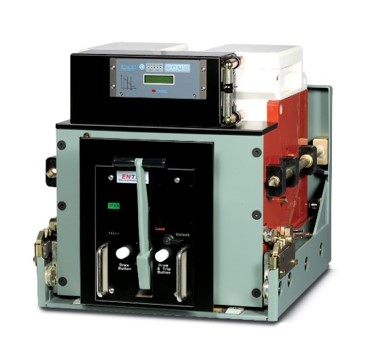

DC Air Circuit Breaker (ACB) Entec Electric & Electronic Co., Ltd.
Description & Characteristics
Compact size and flexible configuration
Maintenance free and convenient operation
Withdrawable type and Fixed type available containing high performance digital protection relay in itself.
Reliable overcurrent and short-circuit current protection to avoid damage in the DC distribution line equipment
Wide range of products and solutions for various application such as renewable energy power plants, Building, Vessel, and industrial facilities
Maintenance free and convenient operation
Withdrawable type and Fixed type available containing high performance digital protection relay in itself.
Reliable overcurrent and short-circuit current protection to avoid damage in the DC distribution line equipment
Wide range of products and solutions for various application such as renewable energy power plants, Building, Vessel, and industrial facilities
Main Customer
- Korea Electric Research Institute
Product Sepcification
- Rated maximum voltage [Vdc] : 1000, 1500
- Frame size [AF] : 1600, 2500, 3200, 5000
- Rated short circuit breaking current [kA] : 35, 45, 50, 65
- Rated insulation voltage [kVdc] : 3.11-3.82
- Rated impulse withstand voltage [kV] : 12
- Applied standard: IEC 60947-1, IEC 60947-2
Certification
- ISO9001
- ISO14001
- VDE
Supplier Information
- Entec Electric & Electronic Co., Ltd.
- entec@entecene.co.kr
- 82-31-299-8400
- www.entecene.co.kr
Gas Insulated Load Break Switches for Underground line Dongwoo Electric Corp.
Description & Characteristics
This is a gas insulation multi-circuit typed load break
switch for a 22.9kV-Y underground distribution line
Main Customer
- Korea Electric Power Company (KEPCO)
- Hyundai Heavy Industries Co.
- LSIS Co.
- Hyosung GoodSprings
Product Sepcification
- Max System Voltage(kV) : 25.8
- Rated lightning impulse withstand voltage(kV) : 125
- Maximum system current(A) : 600
- Over current strength(1sec, kA) : 12.5
- Weight(kg) : 450
Certification
- KEPIC
Supplier Information
- Dongwoo Electric Corp.
- choin1000@i-dongwoo.com
- 82-31-611-8000
- www.i-dongwoo.com
Polymer Insulated Cutout Switch Dongwoo Electric Corp.
Description & Characteristics
This is an extra-high tension polymer cutout switch which
is used for a transformerâs protection and switching as an
attachment on the primary side of a pole transformer on a
22.9kV-Y over head distribution line
Explosion caused from dielectric breakdown is not foreseened
It is made as a silicone housing structure which is highly arc-extinguishable
Explosion caused from dielectric breakdown is not foreseened
It is made as a silicone housing structure which is highly arc-extinguishable
Main Customer
- Korea Electric Power Company (KEPCO)
- Hyundai Heavy Industries Co.
- LSIS Co.
- Hyosung GoodSprings
Product Sepcification
- Max System Voltage(kV) : 25.8
- Rated lightning impulse withstand voltage(kV) : 125
- Maximum System Current(A) : 100
- Weight(kg) : 6.5
- Creepage distance(mm) : 500
Certification
- KEPIC
Supplier Information
- Dongwoo Electric Corp.
- choin1000@i-dongwoo.com
- 82-31-611-8000
- www.i-dongwoo.com

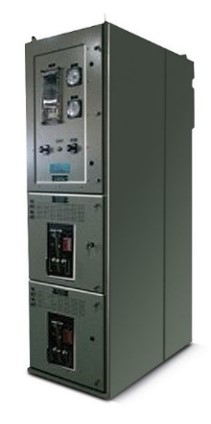

Q Class DC Circuit Breaker Entec Electric & Electronic Co., Ltd.
Description & Characteristics
DC Circuit Breaker (Q-Class) is specifically designed
for Nuclear Power Plants to protect DC power system
equipment such as the Generator, Motor pump and Battery, etc.
Adopts air breaking method and operating mechanism enveloped with insulated frame
Quality is verified at CESI and KERI by passing Q-Class type test, short-circuit test, load break test, Seismic test and BOM(Bill Of Material) related tests, etc.
Safety locking, and circuit breaker is withdrawable only when CB is in open status to enhanced safety
Digital Over-current Relay is used to protect Feeder system and increase protective coordination reliability
Adopts air breaking method and operating mechanism enveloped with insulated frame
Quality is verified at CESI and KERI by passing Q-Class type test, short-circuit test, load break test, Seismic test and BOM(Bill Of Material) related tests, etc.
Safety locking, and circuit breaker is withdrawable only when CB is in open status to enhanced safety
Digital Over-current Relay is used to protect Feeder system and increase protective coordination reliability
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- UAE Barakah Nuclear Power Plant (BNPP)
Product Sepcification
- Type : E1600-Q
- Rated voltage [Vdc] : 125, 250
- Rated current [A] : 800, 1600, 2500
- Rated short circuit withstand current [kA] : 50 (0.25s)
- Rated making current [kA] : 83p/50 kA
- Applied standard: IEEE/ANSI C37.14, C37.16, C37.17, C37.90.1/2, IEC 60255
Certification
- ISO9001
- ISO14001
- KEPIC
- CESI
- KERI
Supplier Information
- Entec Electric & Electronic Co., Ltd.
- entec@entecene.co.kr
- 82-31-299-8400
- www.entecene.co.kr
Solid Insulated Load Break Switches for Underground Line Dongwoo Electric Corp.
Description & Characteristics
The smart Valve Positioner provides precise control over
the valve itself according to the current signal of 4-20 mA
as input from the controller or central control room
It performs a variety of powerful next-generation functions, ranging from automatic calibration to high performance micro-processor operation, to PID optimum control, to alarm and heart communication
It performs a variety of powerful next-generation functions, ranging from automatic calibration to high performance micro-processor operation, to PID optimum control, to alarm and heart communication
Main Customer
- Korea Electric Power Company (KEPCO)
- Hyundai Heavy Industries Co.
- LSIS Co.
- Hyosung GoodSprings
Product Sepcification
- Max System Voltage(kV) : 25.8
- Rated lightning impulse withstand voltage(kV) : 125
- Maximum system current(A) : 600
- Over current strength(1sec, kA) : 12.5
- Weight(kg) : 800
Certification
- KEPIC
Supplier Information
- Dongwoo Electric Corp.
- choin1000@i-dongwoo.com
- 82-31-611-8000
- www.i-dongwoo.com

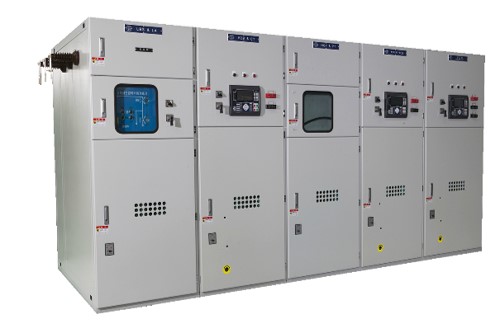

Solid Ring Main Unit Entec Electric & Electronic Co., Ltd.
Description & Characteristics
HCEP (Hydrophobic Cycloaliphatic Epoxy) molded internal
structure leads to environment-friendly application with
excellent outdoor dielectric performance
Extensible and modular structure provides maximum flexibility to the customer with various configuration
Manual operation using self-powered relay or Motorized operation with remote SCADA options are available
Internal Arc withstand capability of 16kA/1s (rms), 40kA (peak), class BFLR
Enhanced safety using earthing switch and disconnector with related mechanical interlocks
Extensible and modular structure provides maximum flexibility to the customer with various configuration
Manual operation using self-powered relay or Motorized operation with remote SCADA options are available
Internal Arc withstand capability of 16kA/1s (rms), 40kA (peak), class BFLR
Enhanced safety using earthing switch and disconnector with related mechanical interlocks
Main Customer
- Orion New Zealand
- Wellington Electricity
- Network Waitaki Ltd.
- The Lines Company
- Waipa Networks Ltd.
Product Sepcification
- Modules : Circuit Breaker, Load Break Switch, Fuse-switch,Direct, VT
- Rated maximum voltage [kV] : 12
- Rated current [A] : 630 (200A for Fuse-switch)
- Rated short circuit withstand current [kA] : 20 (3s)
- Rated short circuit making current [kAp] : 52
- Rated short circuit breaking current (CB only) [kA] : 20
- Applied standard: IEC 62271-1,100,102,103, 200
Certification
- ISO9001
- ISO14001
- KERI
Supplier Information
- Entec Electric & Electronic Co., Ltd.
- entec@entecene.co.kr
- 82-31-299-8400
- www.entecene.co.kr
C-GIS (24kV ~ 38kV) HYOSUNG HEAVY INDUSTRIES
Description & Characteristics
To meet various requirements for substations, Hyosung
designs and manufactures a wide range of SF6 GIS system.
It is Hyosungâs strength to supply high-quality products at
a competitive price.
Hyosung GIS is used in various sites including building, factory, subway and other public facilities requiring high reliability, stability and minimum floor area.
Hyosung can design and manufacture the product that fulfills the requirements of the clients 100% in anywhere in the world. Hyosung designs and manufactures various types of SF6 GIS of maximum rated breaking current of 63kA and the rated voltage ranging from 24kV to 800kV.
All the models comply with IEC, ANSI, IEEE and other international standards and are exported to the clients around the world.
Hyosung GIS is used in various sites including building, factory, subway and other public facilities requiring high reliability, stability and minimum floor area.
Hyosung can design and manufacture the product that fulfills the requirements of the clients 100% in anywhere in the world. Hyosung designs and manufactures various types of SF6 GIS of maximum rated breaking current of 63kA and the rated voltage ranging from 24kV to 800kV.
All the models comply with IEC, ANSI, IEEE and other international standards and are exported to the clients around the world.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)/ Uljin Nuclear PP
- Korea Electric Power Company (KEPCO) / Korea S/S(Gonjian S/S, Gongju S/S, Gimhae S/S. etc.)
Product Sepcification
- Rated Voltage : 24kV ~ 36(38)kV
- Rated current : 1250A ~ 4000A
- Instantaneous Current : 25kA ~ 40kA
Certification
- ISO9001
- ISO14001
Supplier Information
- HYOSUNG HEAVY INDUSTRIES
- hi_sales@Hyosung.com,hi_technical@Hyosung.com
- 82-2-707-7000
- www.hyosungheavyindustries.com
DC Motor Control Panel Entec Electric & Electronic Co., Ltd.
Description & Characteristics
Withdrawable DC Circuit Breaker for easy maintenance
Additional fault current protection using protection fuse
Interlocked trip between DC Circuit Breakers
Monitoring of under voltage and ground voltage, selector switch to monitor Battery/Charger voltage and rectifier voltage
Current and Voltage metering available
Additional fault current protection using protection fuse
Interlocked trip between DC Circuit Breakers
Monitoring of under voltage and ground voltage, selector switch to monitor Battery/Charger voltage and rectifier voltage
Current and Voltage metering available
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
Product Sepcification
- Type : ETMCC
- Rated voltage [Vdc] : 125, 250
- Rated current [A] : 800, 1600, 2500
- Rated short circuit withstand current [kA] : 30kA
- Applied standard: IEEE/ANSI C37.20
Certification
- ISO9001
- ISO14001
- KEPIC
Supplier Information
- Entec Electric & Electronic Co., Ltd.
- entec@entecene.co.kr
- 82-31-299-8400
- www.entecene.co.kr
Earthquake resistance Switchgear (25.8kV) Seojeon Electric Machinery Co., Ltd.
Description & Characteristics
Seojeonâs Earthquake-resistance switchgear enables
stable power supply by minimizing vibration and impact
damage during an earthquake. Our switchgear is adopted
Chaos Elastic Mount structure, Stable operation can be
performed even in magnitude 8.3 grade earthquake.
Main Customer
- Incheon International Airport Corporation / South Korea
- Public Procurement Service / South Korea
- Korea Rail Network Authority/ South Korea
- Defense Installations Agency/ South Korea
Product Sepcification
- Rated Voltage : 25.8kV / Rated current : 1250A
- Power frequency withstanding voltage : 50kV
- Impulse Withstanding voltage : 125kV
- 1000mm(W)*2356(H)*1570(D)
- Satisfy Telcordia GR63 Zone 4 (Richter scale 5.7 ~ 8.3)
Certification
- ISO 9001, ISO 14001
- Passed KERI type test (KERI : Korea Electrotechnology Research Institute)
- Quality Certification (Q-Mark)
- Korea Testing Certification (KTC)
Supplier Information
- Seojeon Electric Machinery Co., Ltd.
- sales@sjem.co.kr
- 82-2-2223-1000 (sales Dept.) ,82-31-632-5620 (HQ & Factory)
- www.sjem.co.kr/eng
GIS Partial Discharge Detection Device of Diagnostic Equipment YOUHO ELECTRIC IND. CO., LTD.
Description & Characteristics
rtially installed sensors to detect any abnormality in the
GIS equipment of power plants and substations discharge
detection sensitivity of the device, a device for checking
the performance and not damaged. The power generation
system and the type of synchronization signal simulated
partial discharge (corona, Boyd, floating, party table) through
the facilities of a data analysis equipment to support efficient
management of partial discharge diagnostic system.
Create a simulated partial discharge signal (broadband 0.5- 1.5GHZ)
Power Grid (PT) generated in synchronization with each type of simulated partial discharge signals - Extracting a synchronized signal from the power substation - Create partial discharge type of simulated partial discharge signals
The partial discharge test and confirm trends recording (effective for risk management) - Record Management Checklist for the maintenance of such examination, ensure the normal operation
Provide a variety of communication services - Provides RS-232, Ethernet Port for connection of various systems and - It is also associated with other equipment to facilitate the implementation of standard protocols
Provide user-friendly UI
Create a simulated partial discharge signal (broadband 0.5- 1.5GHZ)
Power Grid (PT) generated in synchronization with each type of simulated partial discharge signals - Extracting a synchronized signal from the power substation - Create partial discharge type of simulated partial discharge signals
The partial discharge test and confirm trends recording (effective for risk management) - Record Management Checklist for the maintenance of such examination, ensure the normal operation
Provide a variety of communication services - Provides RS-232, Ethernet Port for connection of various systems and - It is also associated with other equipment to facilitate the implementation of standard protocols
Provide user-friendly UI
Main Customer
- Korea Electric Power Company (KEPCO)
Product Sepcification
- Band: 500 ~ l, 5 (X) [MHz]
- Output signal range: -10 ~ -40 [dBm] (using a fixed)
- Attenuator: -40 ~ -70 [dBn])
- Power: DC12V / 3.5A
- Battery: 11.1 [V], 10,400 [mAh]
- Synchronization signal (PT): AC220V
- Communication RS-232: 2 Port
- Communication Ethernet: 10 / 100BASE-TX: lPort
- Number of Channels: 3 channel, N-Type Connector
- LCD: 7 TFT-LCD, Touch Screen
- Size: 242 (W) X 282 (H) X 64 (D) [mm]
- Weight: 3.7 [kg]
- Library: Simulated partial discharge, Magnitude, Pattern and Image
Certification
- Quality Management System Certification
- Environmental Management System Certification
Supplier Information
- YOUHO ELECTRIC IND. CO., LTD.
- youho@youho.co.kr
- 82-31-828-9000
- www.youho.co.kr

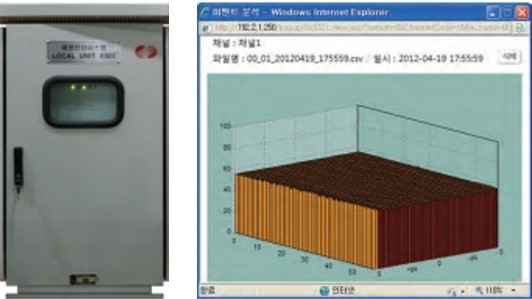

GIS Partial Discharge Diagnostic System YOUHO ELECTRIC IND. CO., LTD.
Description & Characteristics
Real-time, online monitoring system for diagnosis of GIS
partial discharge phenomena. This system consists of the
partial discharge signal detection, data monitoring device
for acquiring data from the sensor installed in the GIS,
analyzing the partial discharge signal, diagnostic server
and the communication equipment.
Main Customer
- Korea Electric Power Company (KEPCO)
Product Sepcification
- LU (Local Unit)
- Remote Firmware Update
- Time synchronization and traceability
- MU (Main Unit)
- Frequency spectrum analysis capabilities
- Make a diagnosis about the type through the neural network learning program
- Web Service and SMS (Short Message Service)
- Signal Measurement Range: 500-150 MHz
- Signal Detection range: at least -85 [dBm], partial discharge detection of less than 5pC
- Power supply: AC220V
- Communication RS-232: 2 port
- Communication Ethernet: 10/10 0BASE-T X: 1por t, 10/100BASE-FX: 2ports
- Input signal channel 3-channel / 6-channel
- Type (PT): Phase-locked power
- LED: power, communications, LED display channel
- LCD: 4.3 , Graphic LCD
- Other: Watchdog and self-diagnostic function, RTC
Certification
- Quality Management System Certification
- Environmental Management System Certification
Supplier Information
- YOUHO ELECTRIC IND. CO., LTD.
- youho@youho.co.kr
- 82-31-828-9000
- www.youho.co.kr
Gas Insulated Switchgear (29kV) Seojeon Electric Machinery Co., Ltd.
Description & Characteristics
Gas insulated switchgear (GIS) is the opening and closing
apparatus for protecting a power system, has been used in
indoor or outdoor power plant and substations.
Main Customer
- Korea Rail Network Authority/ South Korea
- Korea Electric Power Company (KEPCO) / South Korea
Product Sepcification
- Rated Voltage : 29kV / Rated current : 630/2000A
- Power frequency withstanding voltage : 95kV
- Impulse Withstanding voltage : 200kV
- 600mm(W)*2900(H)*3000(D)
Certification
- ISO 9001
- ISO 14001
- Passed KERI type test (KERI : Korea Electrotechnology Research Institute)
- Green Product & Technology Certification (Ministry of Environment)
Supplier Information
- Seojeon Electric Machinery Co., Ltd.
- sales@sjem.co.kr
- 82-2-2223-1000 (sales Dept.) ,82-31-632-5620 (HQ & Factory)
- www.sjem.co.kr/eng

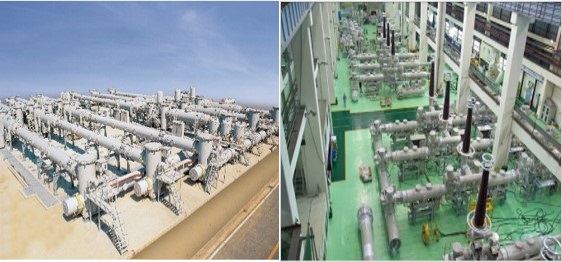

Gas Insulated Switchgear (72.5kV ~ 1100kV) HYOSUNG HEAVY INDUSTRIES
Description & Characteristics
Hyosung offers a wide variety of SF6 Gas Insulated Switchgear
ranging with rated voltages from 72.5kV to 1,100kV and
rated short circuit breaking current up to 63kA.
Gas Insulated Switchgear (GIS) refers to the general equipment of a substation in a metal enclosure filled with high insulation SF6 gas and connected to the ground, which includes a circuit breaker, disconnecting switches, earthing switches, and peripheral devices (e.g., current transformer, voltage transformer, and lightning arrester).
Gas Insulated Switchgear (GIS) refers to the general equipment of a substation in a metal enclosure filled with high insulation SF6 gas and connected to the ground, which includes a circuit breaker, disconnecting switches, earthing switches, and peripheral devices (e.g., current transformer, voltage transformer, and lightning arrester).
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP) / Korea Sin-hanul Nuclear PP 800kV GIS, Shin-Kori Nuclear PP 800kV GIS
- Korea Electric Power Company (KEPCO) / Korea Shin-Ansung S/S 800kV GIS & 362kV GIS, Donghea S/S 362kV GIS & 170kV GIS
- PGCIL / India Varanasi S/S 800kV & 420kV GIS, Pune S/S 800kV GIS
Product Sepcification
- Rated Voltage : 72.5kV ~ 1100kV
- Breaking Current : up to 63kA
- Breaking Times(cycles) : 2 or 3
- Mechanical Endurance : M1 or M2
- Operating Mechanism : Spring or Pneumatic or Hydraulic
Certification
- ISO9001
- ISO14001
- OHSAS18001
Supplier Information
- HYOSUNG HEAVY INDUSTRIES
- hi_sales@Hyosung.com,hi_technical@Hyosung.com
- 82-2-707-7000
- www.hyosungheavyindustries.com

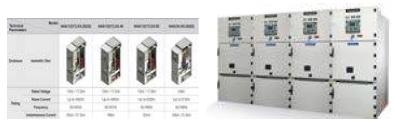

MV SWGR HYOSUNG HEAVY INDUSTRIES
Description & Characteristics
ProSWGR is HYOSUNGâs standard high-voltage distribution
panel designed for safety of the clients first. With
the compact design, the model reduces the required
installation floor area by over 40% from the existing model.
Complete separation of control unit, bus unit, circuit
breaker unit and cable unit minimizes the ripple effect of
accident. ProSWGR has passed KERI certification test and
internal arc test in compliance with IEC62271-200, and
supports various interlocks for safety of clients.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Korea Kori NPP
- Korea East-West Power Co., Ltd (EWP)
- Ulsan Combined cycle, Dangjin thermal PP
- UAE Barakah Nuclear Power Plant (BNPP)
Product Sepcification
- Rated Voltage : 12kV ~ 24kV
- Rated short-circuit breaking current : 25kV or 31.5kV or 40kA or 50kA
- Rated current : 630A ~ 4000A
- Internal arc withstand current : 1 sec
- Standard enclose IP level : IP4X
- Optional enclose IP level : IP41 / 42
Certification
- ISO9001
- ISO14001
- OHSAS 18001
Supplier Information
- HYOSUNG HEAVY INDUSTRIES
- hi_sales@Hyosung.com,hi_technical@Hyosung.com
- 82-2-707-7000
- www.hyosungheavyindustries.com
Solid Insulated Switchgear (Fixed/Draw-out type) Entec Electric & Electronic Co., Ltd.
Description & Characteristics
Environment-friendly and excellent outdoor solid dielectric
performance using HCEP (Hydrophobic Cycloaliphatic Epoxy)
Short-circuit incident free by individual phase molding of main circuit and busbar
Compact sized, light weight and maintenance free with main circuit breaker fixed or withdrawable type structure available
Vacuum interrupter for reliable interrupting performance and P.M.A. (Permanent Magnetic Actuator) mechanism guarantying 10,000 times of mechanical operations
Equipped with advanced micro processor controller with protection, monitoring, metering and communication function
Short-circuit incident free by individual phase molding of main circuit and busbar
Compact sized, light weight and maintenance free with main circuit breaker fixed or withdrawable type structure available
Vacuum interrupter for reliable interrupting performance and P.M.A. (Permanent Magnetic Actuator) mechanism guarantying 10,000 times of mechanical operations
Equipped with advanced micro processor controller with protection, monitoring, metering and communication function
Main Customer
- Korea Electric Power Company (KEPCO)
- Seoul Metro
- Busan Metro
- Korean Railroad
- Rail Network Authority
Product Sepcification
- Type : Single busbar, Double busbar
- Rated maximum voltage [kV] : 7.2, 17.5, 25.8, 40.5
- Rated current [A] : 630, 1250, 2000
- Rated short circuit withstand current [kA] : 25 (3s/1s), 31.5(3s)
- Rated short circuit making current [kAp] : 65, 82
- Rated short circuit breaking current [kA] : 12.5, 25, 31.5
- Applied standard: IEC 62271-1,100,102,200
Certification
- ISO9001
- ISO14001
- KERI
Supplier Information
- Entec Electric & Electronic Co., Ltd.
- entec@entecene.co.kr
- 82-31-299-8400
- www.entecene.co.kr
Limit Switch / Terminal Block YongSung Electric Co., Ltd
Description & Characteristics
Designed to stand against high temperature, pressure and
radiation
Designed to stand against seismic, vibration, chemical spray etc.
Best selection for control panel, equipment, machinery etc.
Designed to stand against seismic, vibration, chemical spray etc.
Best selection for control panel, equipment, machinery etc.
Main Customer
- Korea Electric Power Company (KEPCO)
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Hyundai
- Doosan
- Westinghouse Electric Corporation (WEC)
Product Sepcification
- Duration: 40 years
- Pressure: 0 psig (Atmospheric)
- Temperature: Max. 54.4ËC (130ËF)
- Relative humidity: Max. 90%
- Radiation: 2 X 105 Gy, 2 X 106 Gy
- Code & Standard
- IEEE 323:1983/2003
- IEEE 344:1987/2004
- IEEE 382:1985/1996
- KEPIC END 1100:2000/2005
- KEPIC END 2000:2000/2005
- KEPIC END 3700:2000/2005
Certification
- ISO9001
- KEPIC-EN
Supplier Information
- YongSung Electric Co., Ltd
- overseas@yongsungelec.co.kr
- 82-2-2212-7324
- www.yongsungelec.co.kr
High-voltage Transformer HYOSUNG HEAVY INDUSTRIES
Description & Characteristics
Hyosung Heavy Industries supplies a wide range of
transformers up to 765kV, and 1500MVA, and with both
core form and shell form technology, has the capacity to
offer a wide range of solutions to customers.
Hyosung manufactures transformers under IEC, JEC, ANSI, BS and all required national standards. Hyosung offers customized solutions for project-specific requirements, such as low noise, low loss, special transportation arrangements, and hazardous operation conditions. Especially, Hyosungâs GSU transformers can meet the high reliability standards required by nuclear power plants.
Hyosung manufactures transformers under IEC, JEC, ANSI, BS and all required national standards. Hyosung offers customized solutions for project-specific requirements, such as low noise, low loss, special transportation arrangements, and hazardous operation conditions. Especially, Hyosungâs GSU transformers can meet the high reliability standards required by nuclear power plants.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- Korea Shin-Kori NPP, Kori NPP, Uljin NPP, Younggwang NPP
- various GSUs and auxiliary transformers including 765kV 395.7MVA GSU, 362kV 417.5MVA GSU
- First Energy / US / Perry Nuclear
345kV 75MVA GSU etc. - Progress Energy / US / Robinson Nuclear, Shearon Harris Nuclear
- 230kV 425MVA GSU etc.
- Dominion Virginia Power / US / Millstone Nuclear 345kV 60MVA GSU
Product Sepcification
- 110kV ~ 765kV Core Form Transformer
- 110kV ~ 765kV Shell Form Transformer
- 110kV ~ 765kV Shunt Reactor
- Special Transformer
- Scott Transformer
- SF6 Gas
- Transformer, Mobile Transformer
Certification
- ISO9001
- ISO14001
- OHSAS18001
Supplier Information
- HYOSUNG HEAVY INDUSTRIES
- hi_sales@Hyosung.com,hi_technical@Hyosung.com
- 82-2-707-7000
- www.hyosungheavyindusries.com
Voltage Transformer CTE Tech Co., Ltd.
Description & Characteristics
The transformer is used to expand the measuring range of
the AC voltmeter or to insulate it from high voltage circuits
and instruments
Main Customer
- Hyundai Engineering & Construction Company, Ltd (Hyundai E&C)
- ABB KOREA
- UAE
Product Sepcification
- Max. Voltage : 0.66kV
- Standard : KEPIC EMB 5100, For Indoor, Single Phase, Line to Lone Voltage Transformer, Epoxy Molded Type
- Frequency : 60 or 50Hz
Certification
- ISO 9001
- ISO 14001
- KEPIC
Supplier Information
- CTE Tech Co., Ltd.
- ctetech@ctetech.co.kr
- 82-31-767-0032
- www.ctetech.co.kr
Voltage Transformer Dongwoo Electric Corp.
Description & Characteristics
The transformer is used to expand the measuring range
of the AC voltmeter or to insulate it from high voltage
circuits and instruments
Main Customer
- Korea Nuclear Power Plant
- Hyundai Electric & Energy Systems Co., Ltd.
- LS Electric Co., Ltd.
- Hyosung Heavy Industries
- Seondo Electric
- Overseas Nuclear Power Plant
- UAE
Product Sepcification
- Max System Voltage(kV) : 15.5
- Standard : KEPIC EMB 5100, For Indoor, Single phase Line to Lone Voltage Transformer Epoxy Molded Type
- Frequency : 60 or 50Hz
Certification
- ISO 9001
- ISO 14001
- KEPIC
Supplier Information
- Dongwoo Electric Corp.
- choin1000@i-dongwoo.com
- 82-31-611-8000
- www.i-dongwoo.com
Carbon Brush Morgan
Description & Characteristics
As an important part of supplying electricity to the motor
rotor, the efficiency and performance of the motor is
determined by the selection of the brush material
Morgan provides the most diverse range of carbon materials in Korea, and promises to guarantee quality by adhering to international quality system Certification QS 9002 / ISO 9000
Morgan provides the most diverse range of carbon materials in Korea, and promises to guarantee quality by adhering to international quality system Certification QS 9002 / ISO 9000
Main Customer
- Daewoo Shipbuilding & Marine Engineering Co.
- Hyundai Engineering & Construction Company, Ltd (Hyundai E&C)
- Samsung Electronics Co.
Product Sepcification
Certification
- ISO 9001
- ISO 14001
- ASME
Supplier Information
- Morgan
- gy.jang@morganplc.com
- 82-31-735-5100
- www.morgankorea.kr
EPD Storage & Management System U2NG
Description & Characteristics
EPD withdrawal/return/storage and current status management
EPD battery and condition check
EPD initialization when withdrawing EPD
EPD Mode (RUN, PAUSE) Auto Change when withdrawing /returning
Multiple EPDs setting change in batches (mode conversion between manual and automatic, alarm setting), and calibration date management
Administrator withdrawals and full EPD withdrawals/returns
EPD Usage history check and exposure dose check by worker
EPD battery and condition check
EPD initialization when withdrawing EPD
EPD Mode (RUN, PAUSE) Auto Change when withdrawing /returning
Multiple EPDs setting change in batches (mode conversion between manual and automatic, alarm setting), and calibration date management
Administrator withdrawals and full EPD withdrawals/returns
EPD Usage history check and exposure dose check by worker
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
- 2018 : Kori NPP # 1, Shin-Hanul NPP # 1
- 2017 : Wolsong NPP # 3
- Korea Atomic Energy Research Institute (KAERI) Shin-Kori NPP # 1
Product Sepcification
- Power: 100V - 240V / 50Hz - 60Hz
- Biometric info Recognition System(select one)
- Finger Print Reader
- Optical Sensor, USB Interface
- Hand Vein Recognizer
- Contactless Infrared Sensor, Interface Ethernet/RS232/RS485
- Barcode Scanner: 1D/2D Redial Form, Effective Distance 47~216mm
- Industrial PC: CPU-Intel Core TM i7 3.4Ghz, RAM-4GB, SSD-120GB/li>
- Monitor: 15â LCD infraredType, Screen Rat. 4:3, Res. 1024*768
Certification
- KC
- GS
- CE
Supplier Information
- U2NG
- jsh@u2ng.co.kr
- 82-54-776-6201
- www.u2ng.co.kr
Gantry Tower for Substation Bosung Powertec Co., Ltd.
Description & Characteristics
Bosung Powertec designs, processes, plating, manufacture,
and assembles power transport facilities using steel such
as steel and steel plates
We provide accurate and optimized products based on design and quality control using our own 3D design programs, manufacturing with automated facilities, and pre-manufacturing tools
We provide accurate and optimized products based on design and quality control using our own 3D design programs, manufacturing with automated facilities, and pre-manufacturing tools
Main Customer
- Korea Electric Power Company (KEPCO)
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
Product Sepcification
Certification
- KEPIC
- ISO 9001
- ISO 14001
Supplier Information
- Bosung Powertec Co., Ltd.
- 82-43-857-0311
- www.bosungpower.co.kr
Polymer L.A Dongwoo Electric Corp.
Description & Characteristics
Polymer-housed surge arresters are used for limiting the
over-voltage due to a lightning and switching surge to the
required protective level
The superior protective characteristics of arrester provide excellent over-voltage protection for distribution system equipment
The superior protective characteristics of arrester provide excellent over-voltage protection for distribution system equipment
Main Customer
- Korea Electric Power Company (KEPCO)
- Hyundai Heavy Industries Co.
- LSIS Co.
- Hyosung GoodSprings
Product Sepcification
- Rated voltage(kV) : 18
- Normal discharge current(A) : 2500
- High current(Peak current, 4/10μs, kA) : 25
- Virtual duration of peak T(μs) : 500
- Peak current(A) : 50
- Rated frequency(Hz) : 60
- Weight(kg) : 3.5
Certification
- KEPIC
Supplier Information
- Dongwoo Electric Corp.
- choin1000@i-dongwoo.com
- 82-31-611-8000
- www.i-dongwoo.com
Simulation Testing Device for Testing Inverter Control Performance (ITS-5000) E2S CO., LTD.
Description & Characteristics
Simulation testing device for verifying inverter control
performance is a testing device for verifying performance
about main functions of inverter system. It can detect accident
wave and card causing failure through main signal monitoring,
analysis of inverter main functions and, check inverter system
& individual card and record control performance.
Main Customer
- Korea Hydro & Nuclear Power Company, Ltd (KHNP)
Product Sepcification
- Inverter output power mock (Over, Under Voltage)
- Alternative power mock
- To get and a nalyze t he output of i nverter and wave of alternative power in switchover test of inverter
- Checking with details about main functions by card of inverter system
- To measure the quality of output power of inverter when changing loads by overload device
- Self-diagnosis function of tester of inverter control performance
Certification
- KEPIC-EN
- KS Q ISO 9001: 2010
- CE certificate (Digital Excitation Control System)
Supplier Information
- E2S CO., LTD.
- e2s@e2s.co.kr
- 82-2-488-0586
- www.e2s.co.kr
Thermoelectric Air Conditioner CNL-200TEC / CNL-800TEC C&L Corp.
Description & Characteristics
Inflow of heat(high temperature), humidity and foreign
material become the cause of failure & malfunction in
the most electric/electronic devices. Particularly, digital
devices exposed to high temperature environment
sharply shorten their lifespan due to aging of the parts and
the facilities caused by this stops frequently.
Thermoelectric cooling system is a product that can secure reliability of facilities by blocking and preventing the cause of main failure and malfunction of digital devices related to various control, electric, telecommunication positioned at the high temperature area of turbine, boiler vicinity of domestic and foreign power plant.
Thermoelectric cooling system is a product that can secure reliability of facilities by blocking and preventing the cause of main failure and malfunction of digital devices related to various control, electric, telecommunication positioned at the high temperature area of turbine, boiler vicinity of domestic and foreign power plant.
Main Customer
- Korea South-East Power Co., Ltd (KOEN)
- Korea Southern Power Co., Ltd (KOSPO)
- Korea Western Power Co., Ltd (WP)
- Korea Midland Power Co., Ltd (KOMIPO)
- Korea East-West Power Co., Ltd (EWP)
- Kuwait Doha-west Power Plant
- Thailand Navanakorn Power Plant
Product Sepcification
It has wide operating range with 5°C~60°C and enables
to operate under diverse environmental conditions. Its
dehumidification function makes the temperature and
humidity to be maintained even in a site with high humidity
and to main panel of electronic equipment room. It can
solve the problems that the existing thermo-hygrostat
and conditioning equipment could not solved because it
can remove condensation liquid water without a separate
drain. It can install to sensitive equipment because it does
not have a mechanical diving such as compressor. It can
operate only with power without an outdoor unit and drain.
Certification
Supplier Information
- C&L Corp.
- infor@coolnlight.com
- 82-32-818-0354
- www.coolnlight.com
